214683 510 Revision A
Installing Plastic Fingers
WARNING
To avoid bodily injury from fall of raised reel, always engage reel safety props before going under raised
reel for any reason.

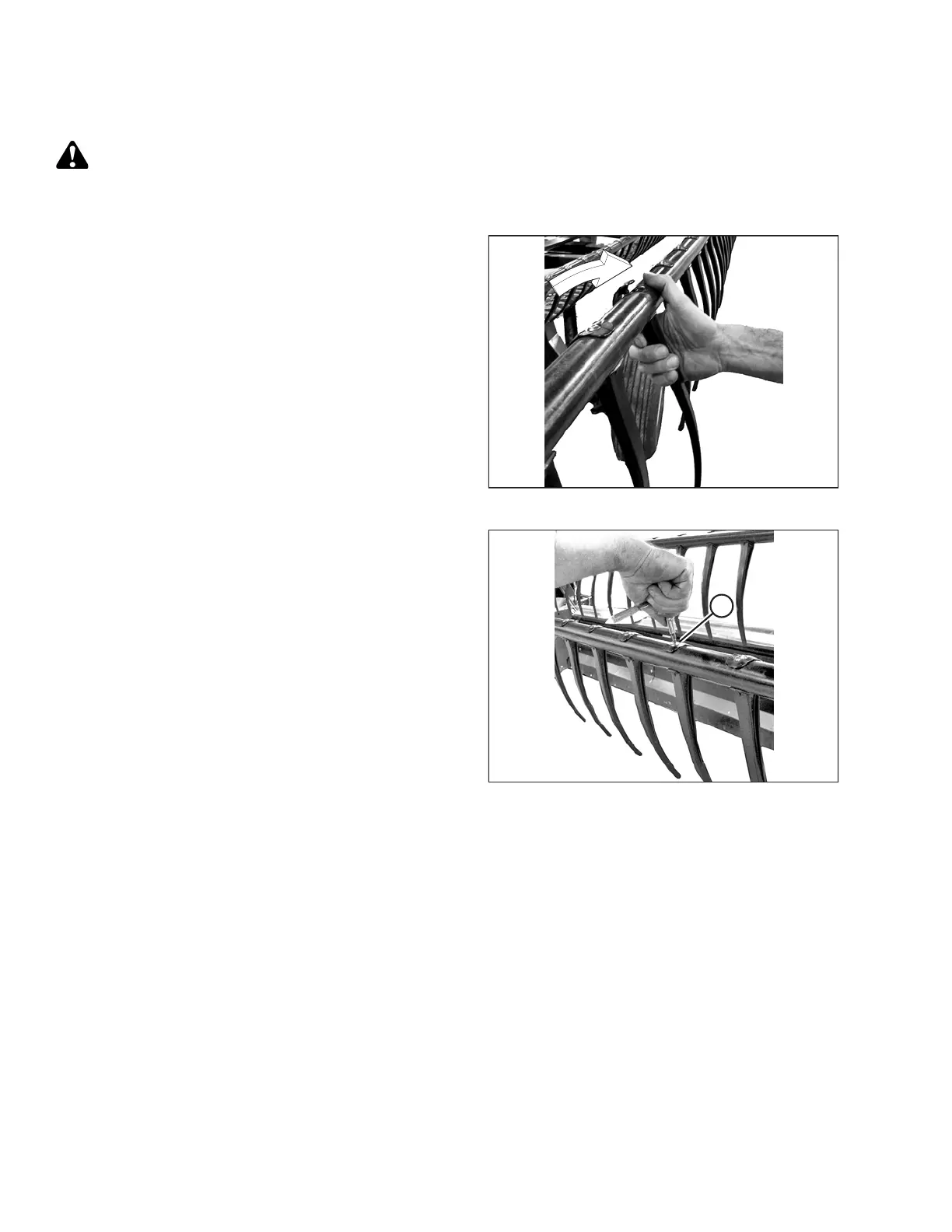

Figure 5.234: Installing Plastic Finger
1. Position the finger on the rear of the finger tube.
Engage the lug at the bottom of the finger in the lower
hole in the tine tube.
2. Lift the top flange gently and rotate the finger as shown
until the lug in the top of the finger engages the upper
hole in the finger tube.
Figure 5.235: Installing Plastic Finger
IMPORTANT:
Do NOT apply force to the finger prior to tightening the
mounting screw. Applying force without tightening the
mounting screw will break the finger or shear the
locating pins.
3. Install screw (A) using a Torx
®
Plus 27 IP socket wrench
and torque to 8.5–9.0 Nm (75–80 lbf·in).
MAINTENANCE AND SERVICING
