MacDon FlexDraper FD140 - Lubricating Reel Drive Chain

214683 400 Revision A
1008645

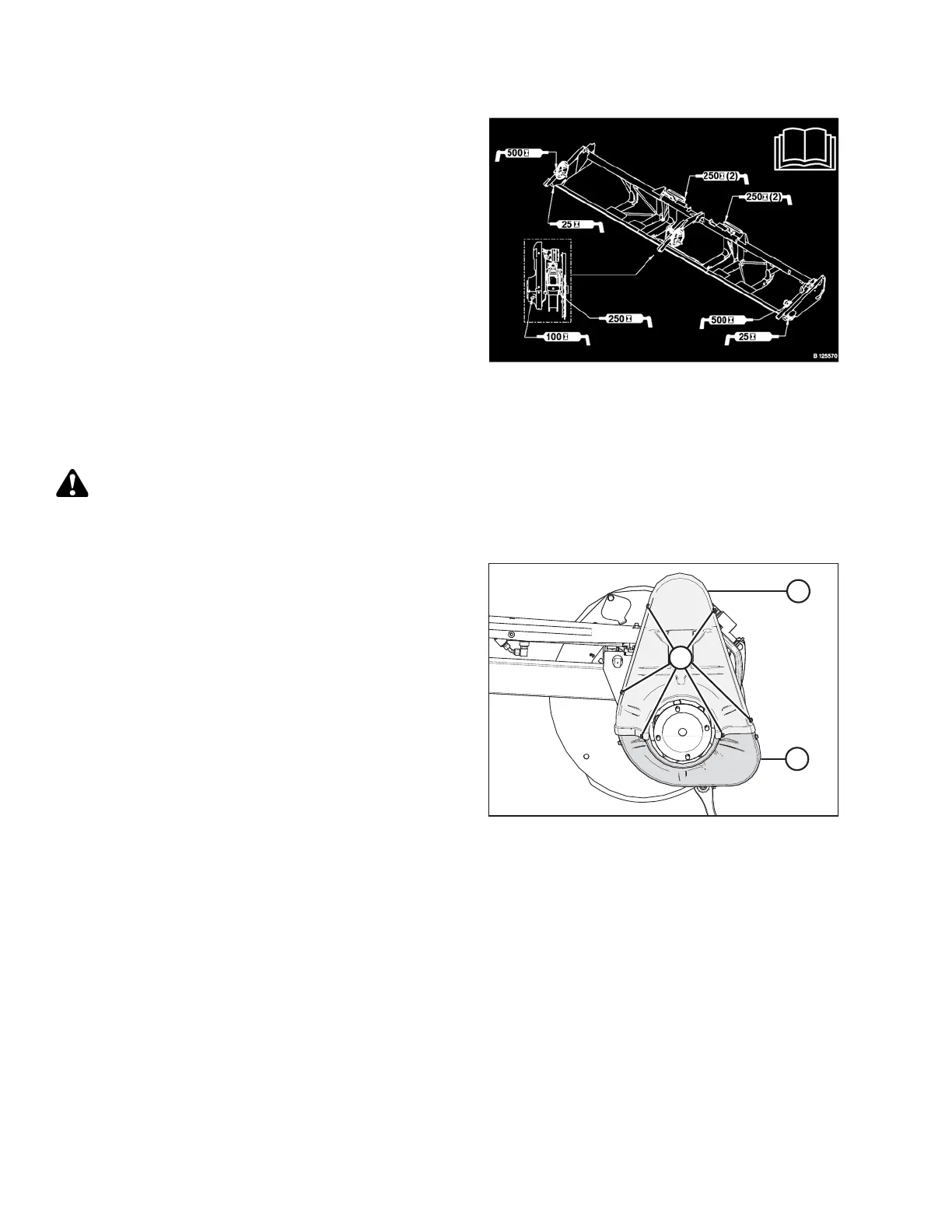

Figure 5.15: FD1 Series Grease Point
Layout Decal
Lubricating Reel Drive Chain
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
1012795
A
B
C
Figure 5.16: Drive Cover
1. Shut down the engine, and remove the key from the
ignition.
2. Remove six bolts (A) securing upper cover (B) to the
reel drive and lower cover (C).
MAINTENANCE AND SERVICING
