214683 401 Revision A

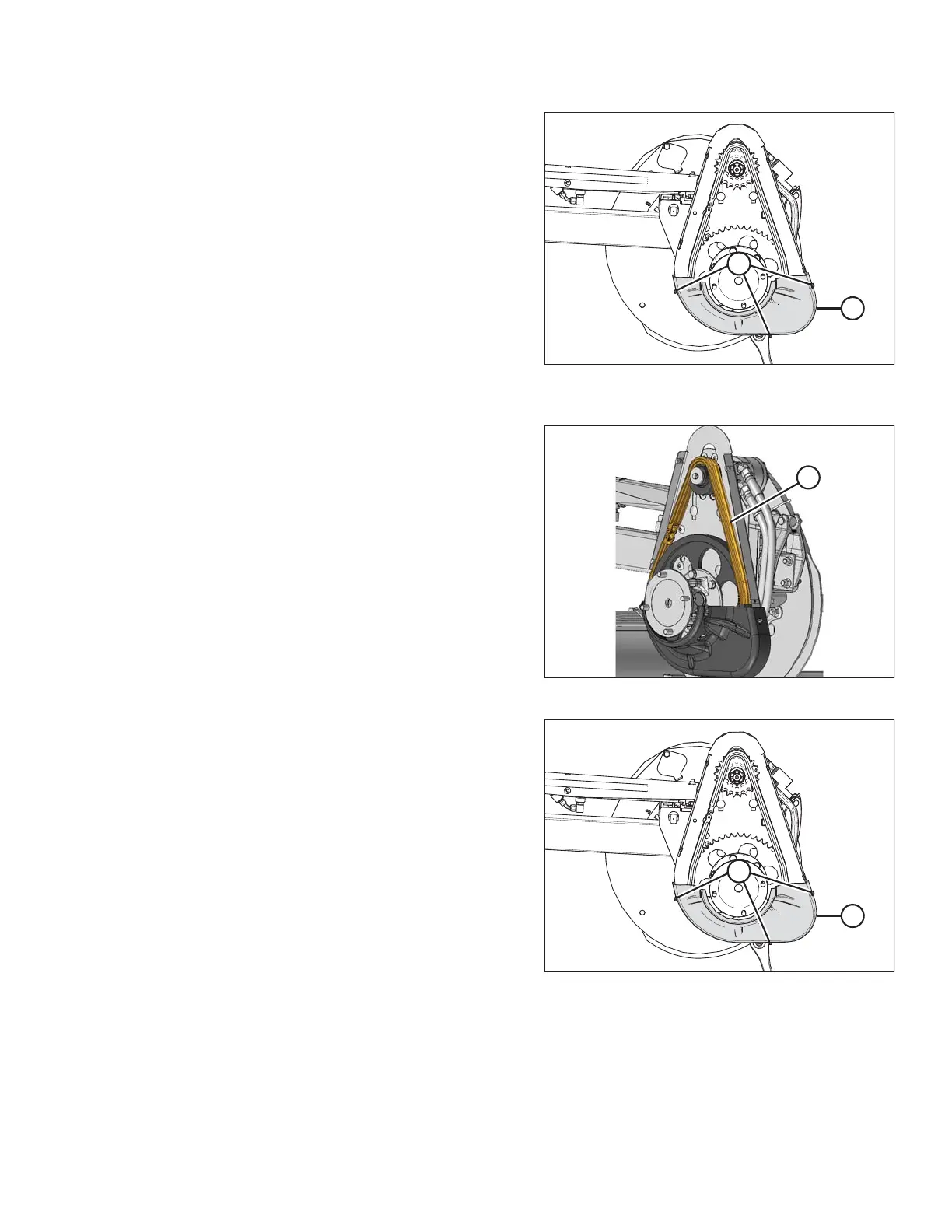

Figure 5.17: Lower Drive Cover (Upper Cover
Removed)
3. Remove three bolts (A) and remove lower cover (B) if
necessary.
Figure 5.18: Drive Chain
4. Apply a liberal amount of grease to the chain (A).
Figure 5.19: Lower Drive Cover
5. Position lower drive cover (B) onto the reel drive
(if previously removed), and secure with three bolts (A).
