4.8 Attaching and Detaching Header from Float Module
Attaching/detaching procedures are the same for all makes and models of combines. Headers can be attached to
the float module from either field or transport configurations.
The procedures in this manual require that the float module remains attached to the combine. Attach/detach the
float module only if performing the following tasks:
• Detaching the header for use on a windrower
• Changing headers
• Performing certain maintenance tasks
4.8.1 Detaching Header from Float Module
DANGER
To avoid bodily injury or death from unexpected start-up or fall of raised machine, always stop engine,
remove key, and engage safety props before going under header for any reason.

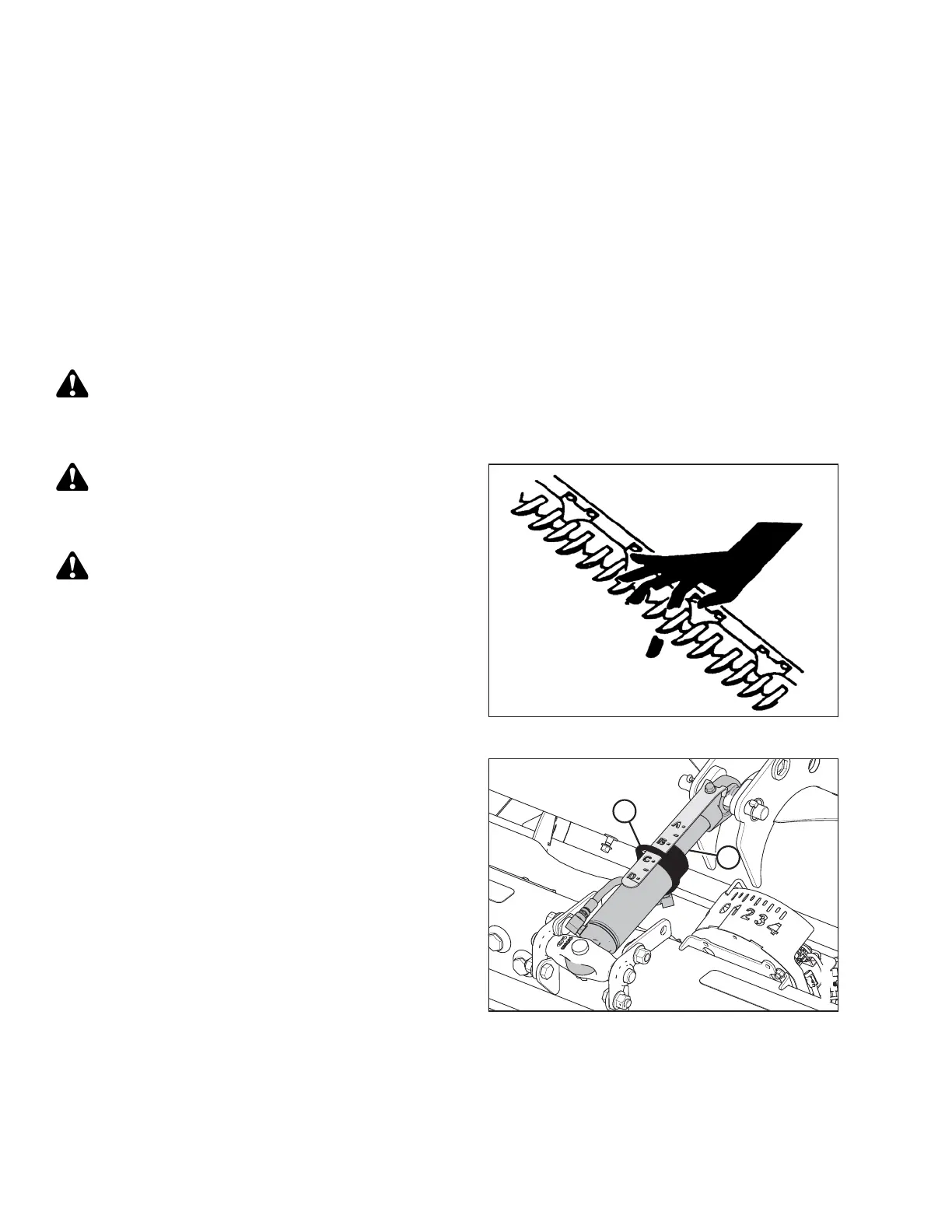

Figure 4.140: Cutterbar Hazard
WARNING
Keep hands clear of the area between guards and knife
at all times.
CAUTION
Wear heavy gloves when working around or
handling knives.
Figure 4.141: Center-Link
1. Start the engine and the lower header.
2. Increase clearance under the float module feed draper
by tilting the header and fully extending the cylinder (B)
until indicator (A) is at position D.
3. Raise the reel to its full height.
4. Stop the engine and the remove key from the ignition.
5. Engage the reel safety props.
