214683 108 Revision A

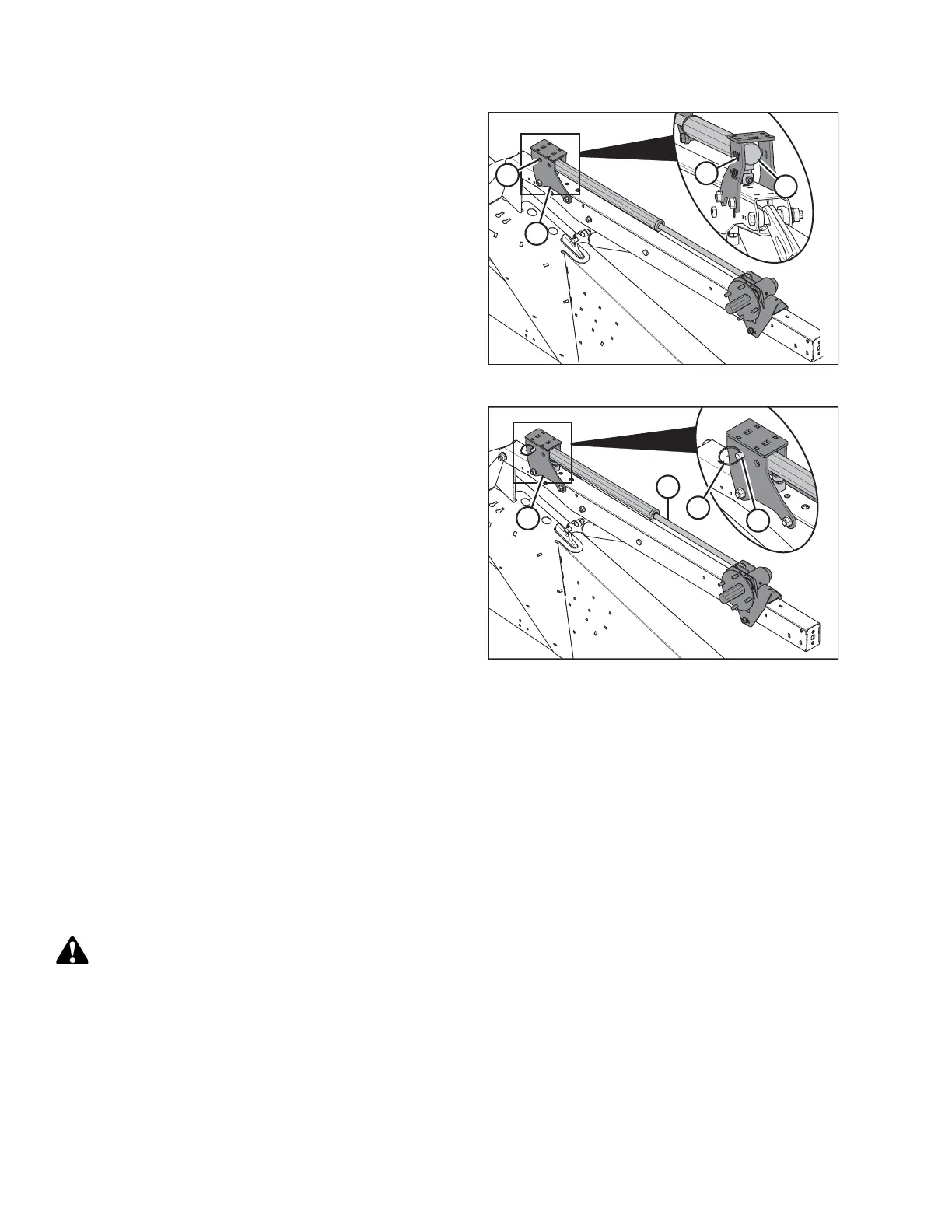

Figure 3.121: Left Reel Arm Cylinder
2. Push reel back toward the header until the end of the
cylinder (A) lines up with the aft setting holes (B)
(position 1) in the support bracket (C).
Figure 3.122: Left Reel Arm Cylinder in Aft
Position
3. Insert clevis pin (A) into the aft setting holes in the
support bracket (B) and through the end of the
cylinder (C). Secure pin with ring (D).
4. Check the reel clearance to the backsheet, upper cross
auger (if installed), and reel braces.
5. Adjust the reel tine pitch if necessary. Refer to 3.7.12
Reel Tine Pitch, page 111.
Repositioning Fore-Aft Cylinders on Non-European-Configured Headers with Multi-Crop Rapid
Reel Conversion Option
The reel can be moved approximately 227 mm (9 in.) farther aft by repositioning the fore-aft cylinders on the reel
arms. The Multi-Crop Conversion option is applicable to double-reel headers only.
NOTE:
MD #B5605 (Short Brace Kit for Center Reel Arm) must be installed before repositioning fore-aft cylinders.
NOTE:
Multi-Crop Rapid Reel Conversion option is not available for European-configured headers.
DANGER
To avoid bodily injury or death from unexpected start-up of machine, always stop engine and remove key
from ignition before leaving operator’s seat for any reason.
OPERATION
