214683 107 Revision A

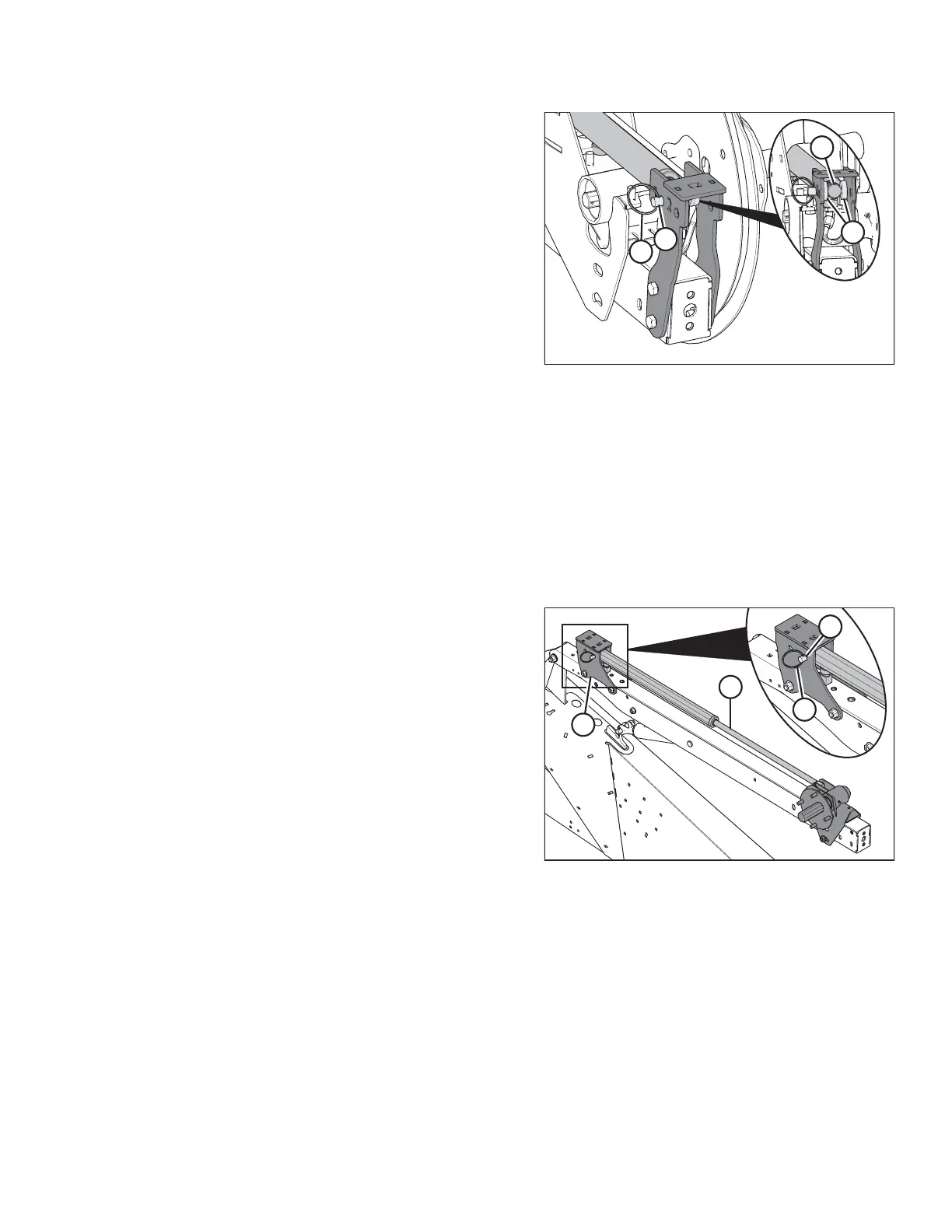

Figure 3.119: Right Reel Arm Cylinder in Aft
Position
3. Insert pin (A) into the aft setting holes, and through the
cylinder end (C) and washers (D). Secure the pin with
ring (B).
Reposition left reel arm cylinder as follows:
NOTE:
Some reel components are not shown in illustrations for improved clarity.
NOTE:
Reels on European-configured headers are at their most forward setting when cylinders are set in position 2 on the
support brackets. Reels on these headers are in their most aft position when cylinders are set in position 1 on the
support brackets.
Figure 3.120: Left Reel Arm Cylinder in Forward
Position
1. Remove ring (A) and pin (B) inside the left fore-aft
support bracket (D) securing the cylinder (C). Retain pin
and ring.
OPERATION
