When a parameter label is displayed and the OK button (C) is pressed before 3 seconds, the parameter’s value will
be displayed.
Pressing AREA (E) will cycle through the options. When LEFT is displayed on the LCD, press the OK button (C),
and the auto header height control (AHHC) voltage will be shown on the display.
Press the DIST button (F) to cycle back through the table.
Press the CLEAR button (D) to exit header diagnostics and return to normal mode.
Refer to 3.8.1 Sensor Operation, page 125.
3.8.8 Gleaner S9 Series Combines
Setting up the Header (Gleaner S9 Series)
NOTE:
Changes may have been made to the combine controls or display since this document was published. Refer to the
combine operator’s manual for updates.
1018443
A
B
C
D

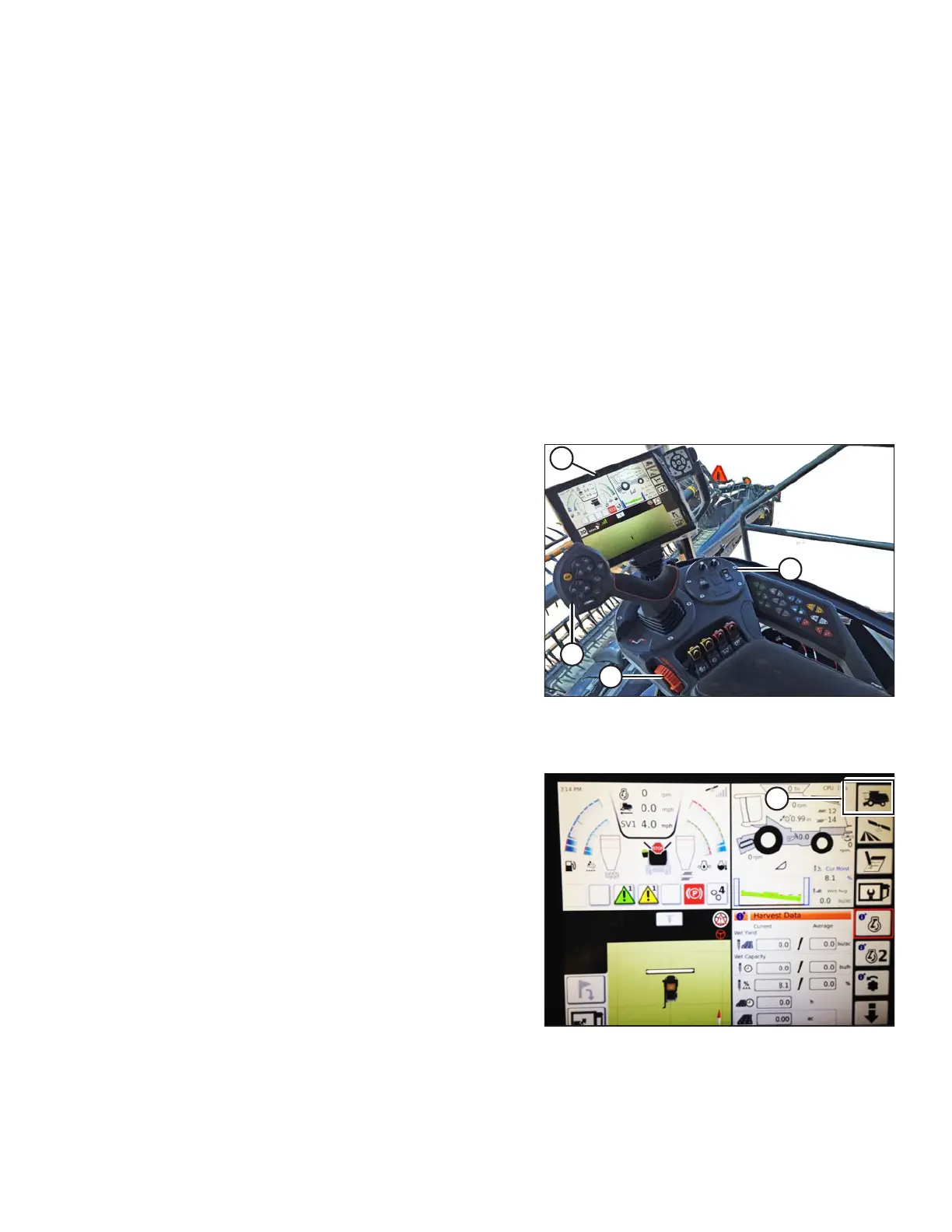

Figure 3.279: Gleaner S9
A - Tyton Terminal B - Control Handle
C - Throttle D - Header Control Cluster
The AGCO Tyton terminal (A) is used to set up and manage
a MacDon draper header on a Gleaner S9 combine. Use
the touch screen display to select the desired item on the
screen.
1018400
A
Figure 3.280: Combine Icon on Home Page
1. On the top right quadrant of the home screen, touch the
COMBINE icon (A). The COMBINE MAIN
MENU opens.
