Reposition the left reel arm cylinder as follows:
NOTE:
Some reel components not shown in illustrations for improved clarity.

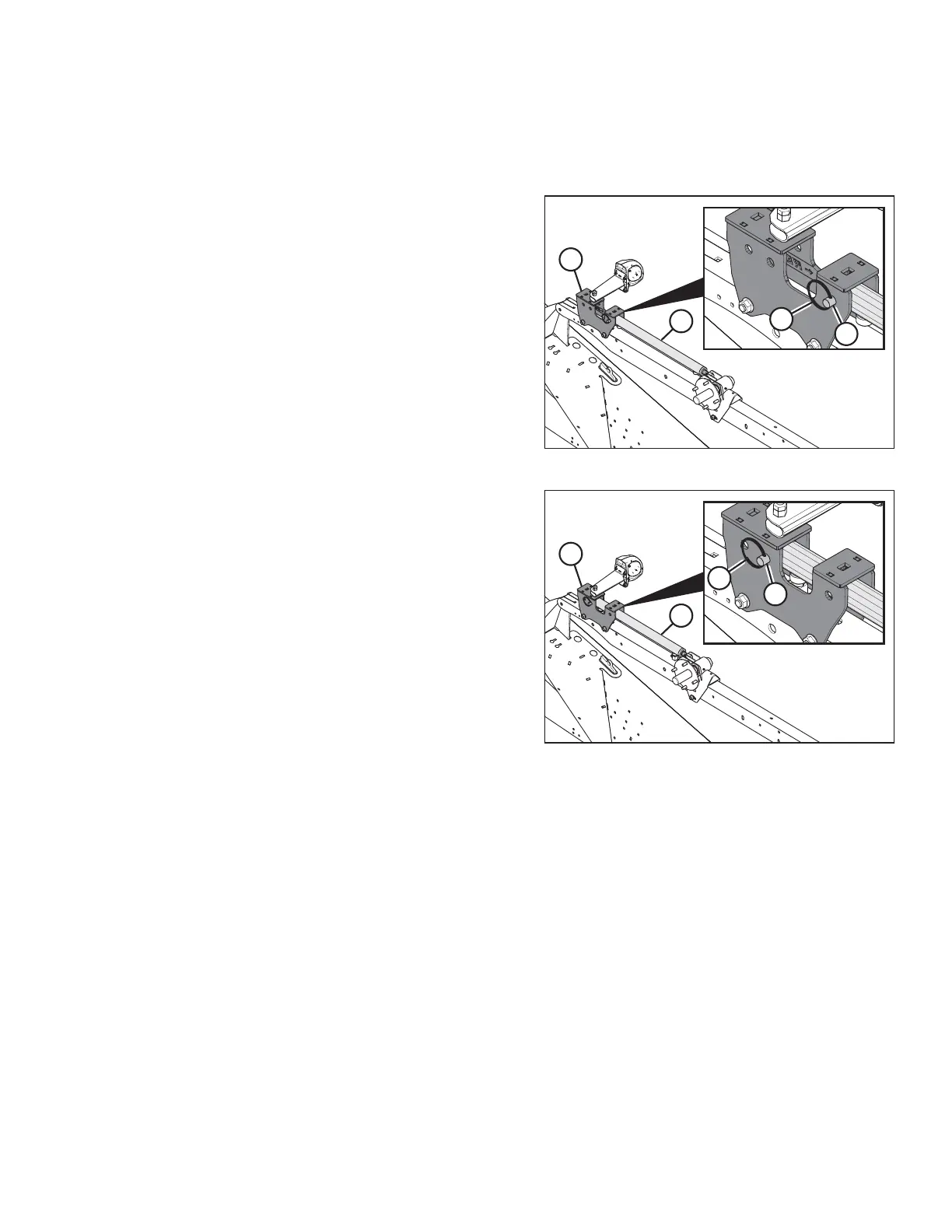

Figure 3.123: Left Reel Arm in Forward Position
1. Position reel fully aft with support arms horizontal.
2. Stop the engine and remove the key from the ignition.
3. Remove ring (A) and clevis pin (B) from inboard side of
bracket (C). Retain ring and clevis pin.
4. Push the reel back until the cylinder barrel (D) lines up
with reel position 2 hole on bracket.
5. Reinstall clevis pin (B) at the new position and secure
with ring (A).
Figure 3.124: Left Reel Arm in Aft Position
