Reposition the center reel arm cylinder as follows:
NOTE:
Some reel components not shown in illustrations for improved clarity.
1024344
D
A
B
C

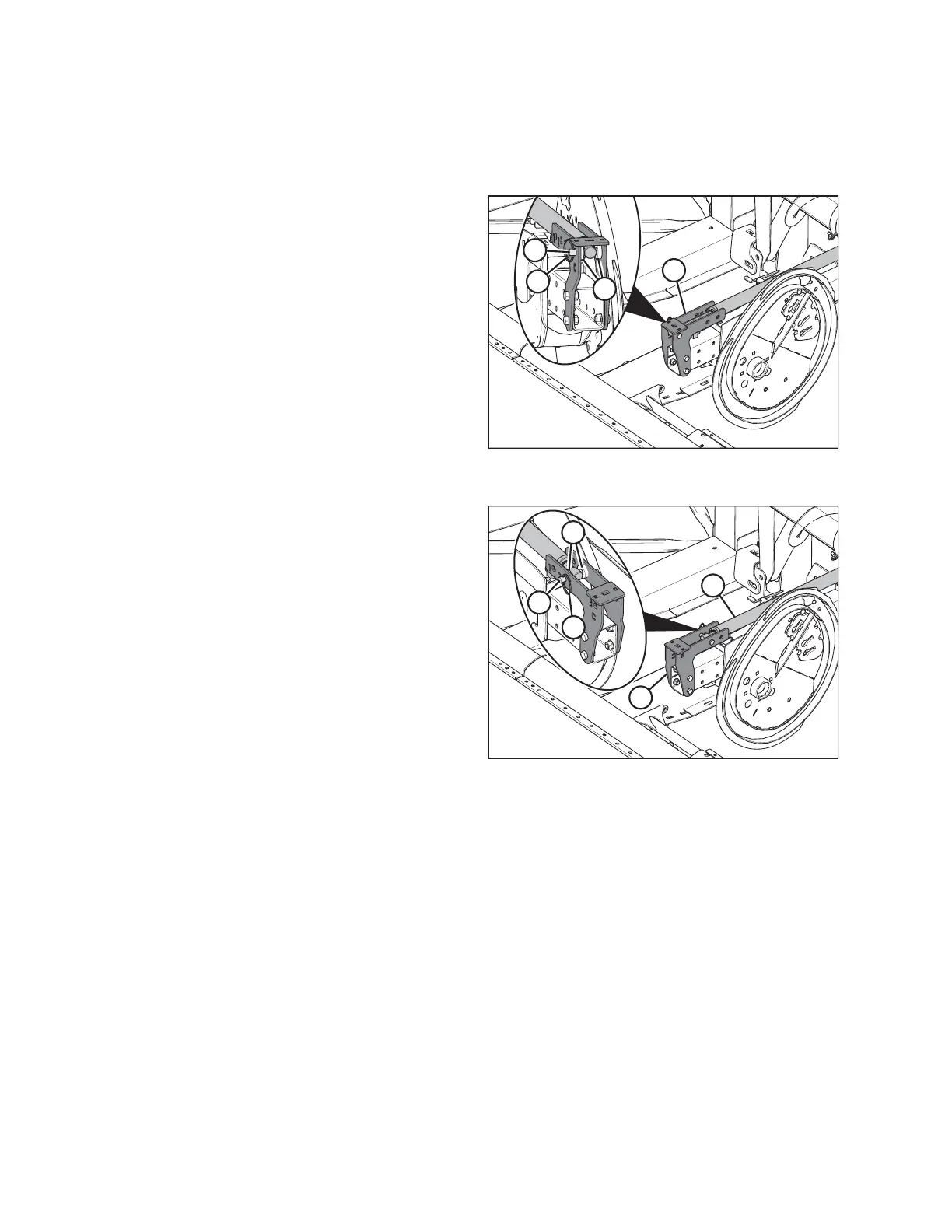

Figure 3.125: Center Reel Arm in Forward
Position
1. Remove ring (A), clevis pin (B), and washers (C) from
bracket (D). Retain ring, clevis pin, and washers.
1024355
E
D
A
B
C
Figure 3.126: Center Reel Arm in Aft Position
2. Push the reel back until the end of the cylinder (E) lines
up with reel position 2 hole on bracket (D). Position
washers (C) on both sides of the cylinder end inside the
bracket.
3. Reinstall clevis pin (B) at the new position and secure
with ring (A).
Reposition the right reel arm cylinder as follows:
NOTE:
Some reel components not shown in illustrations for improved clarity.
