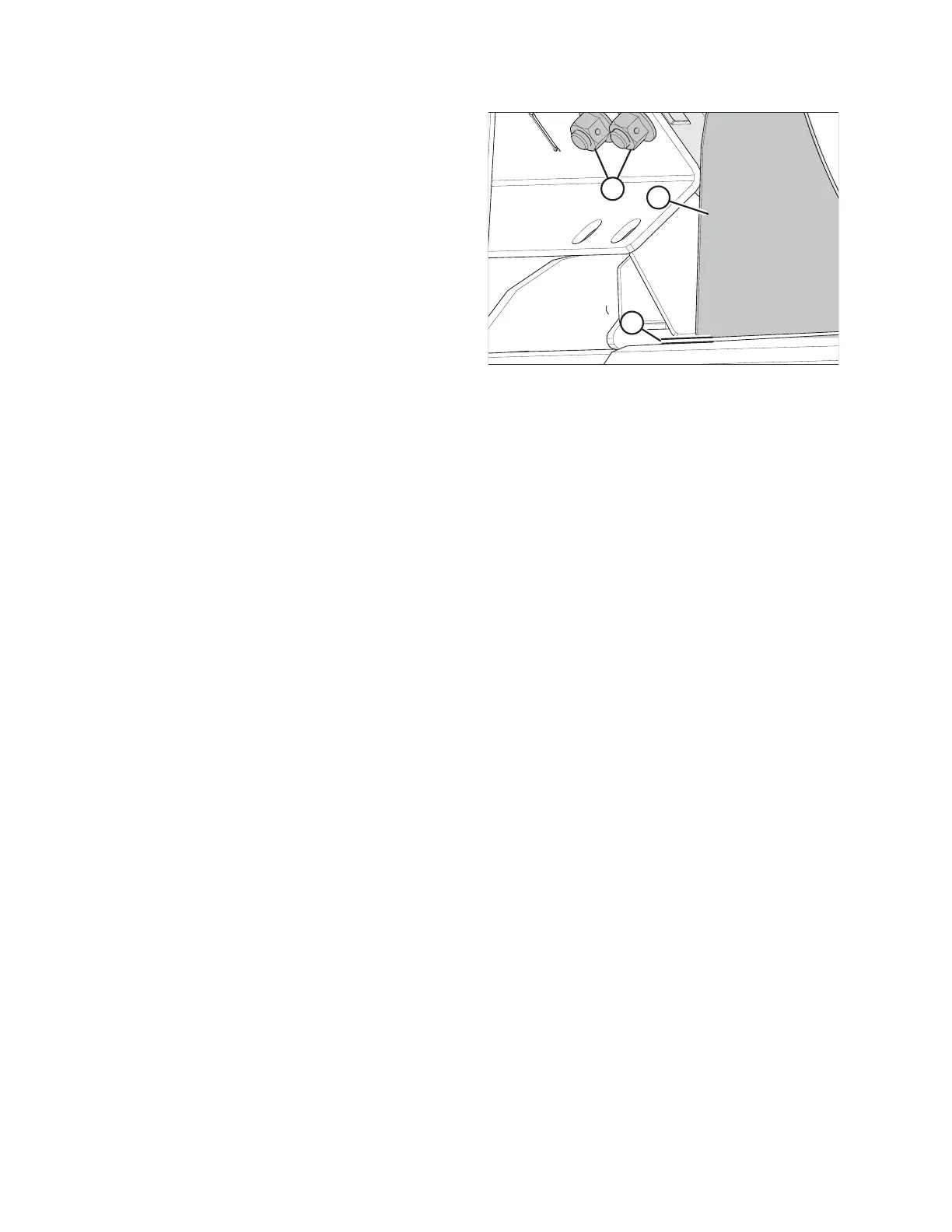

Figure 5.181: Pan and Deflector Distance
4. Adjust deflector (A) so that distance (C) between pan
and deflector is 4–6 mm (5/32–1/4 in.).
5. Tighten nuts (B).
6. Repeat for opposite deflector.
7. Attach header onto the combine. Refer to 4 Header
Attachment/Detachment, page 307.
8. After attaching header to combine, extend center-link
fully, and check gap between deflector and pan.
Maintain the 4–6 mm (5/32–1/4 in.) gap.
