MacDon FlexDraper FD140 - Page 325

214683 301 Revision A
1001629
A
B
C
D

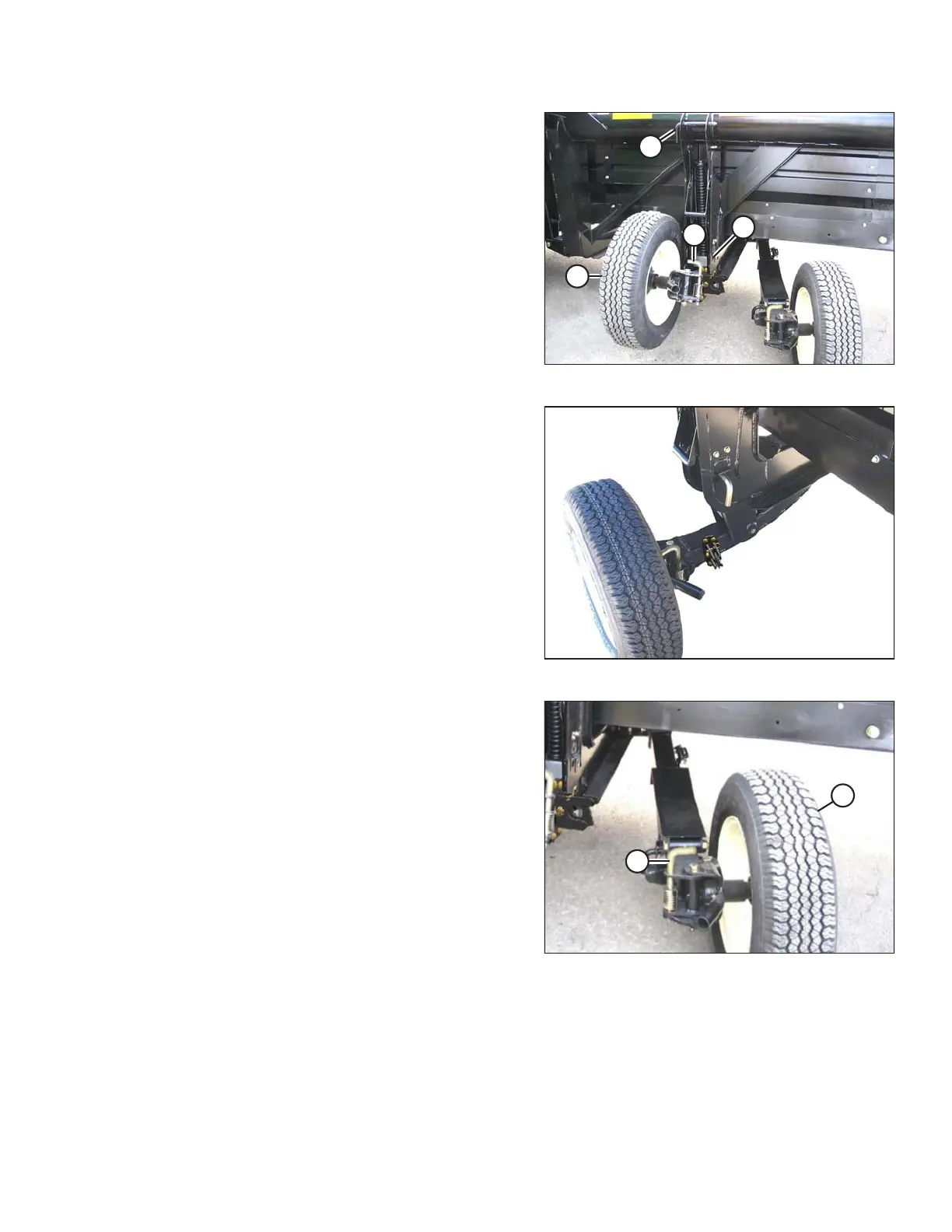

Figure 3.533: Rear Wheels
6. Remove the pin (A) and install at location (B) to secure
the linkage. Turn the pin to lock.
7. Pull the pin (D), swivel the wheel (C) counterclockwise
90°, and release the pin to lock.
1001152
Figure 3.534: Left Wheel in Transport Position
8. Ensure the left wheel is in the transport position
as shown.
1001628
A
B
Figure 3.535: Right Rear Wheel
9. Pull the pin (A) and swivel the right rear wheel (B)
clockwise 90°.
OPERATION
