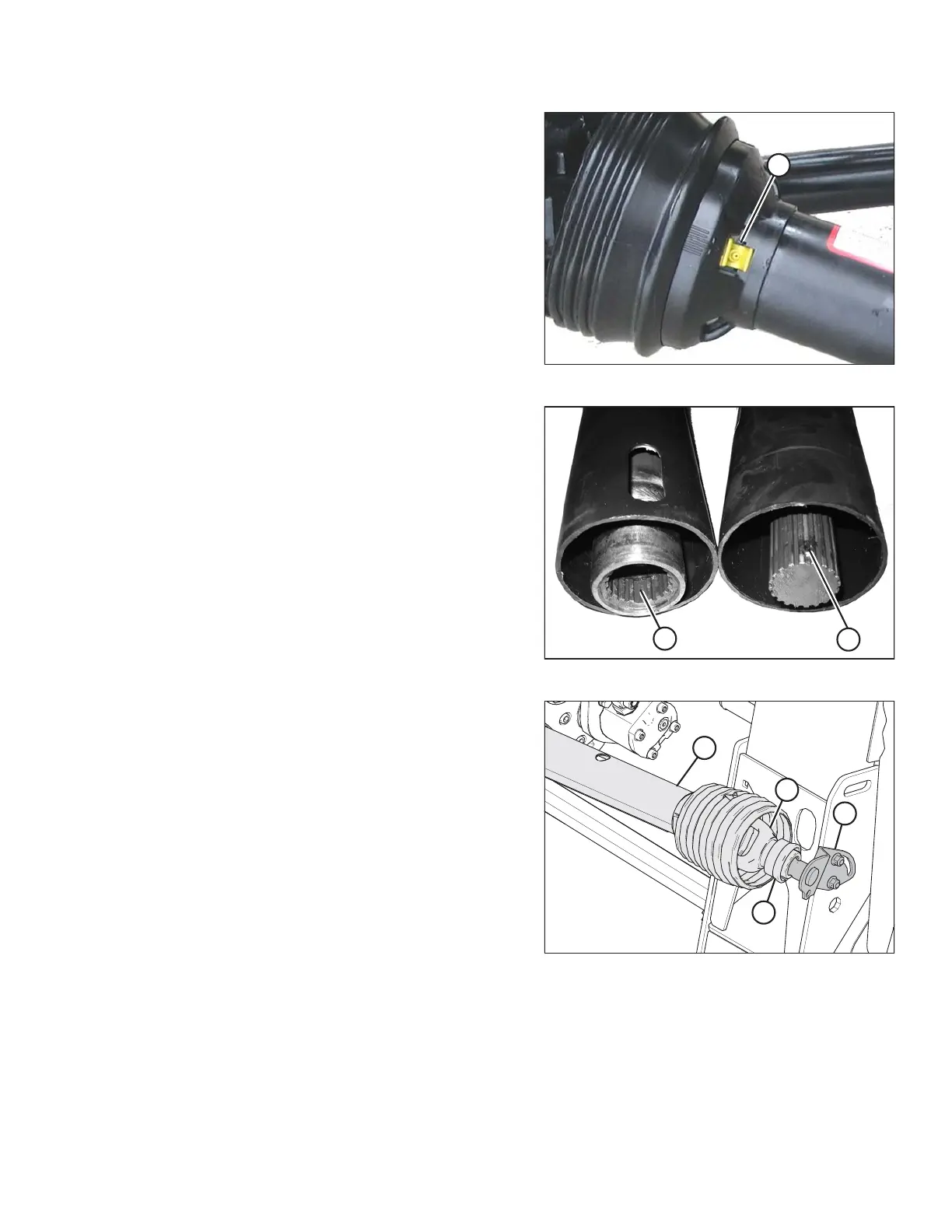

Figure 5.44: Driveline Guard
4. Push the grease fitting (A) back into the guard.
Figure 5.45: Driveline
5. Assemble the driveline.
NOTE:
The splines are keyed to align the universals. Align
weld (A) with the missing spline (B) when assembling.
Figure 5.46: Combine End of Driveline
6. Position the combine end of the driveline (A) on the
power take-off (PTO) storage support (B). Pull back the
collar (C) on the driveline and slide driveline onto the
support until the driveline yoke (D) locks onto support.
Release collar (C).
