MacDon FlexDraper FD140 - Page 287

214683 263 Revision A
1003672
A

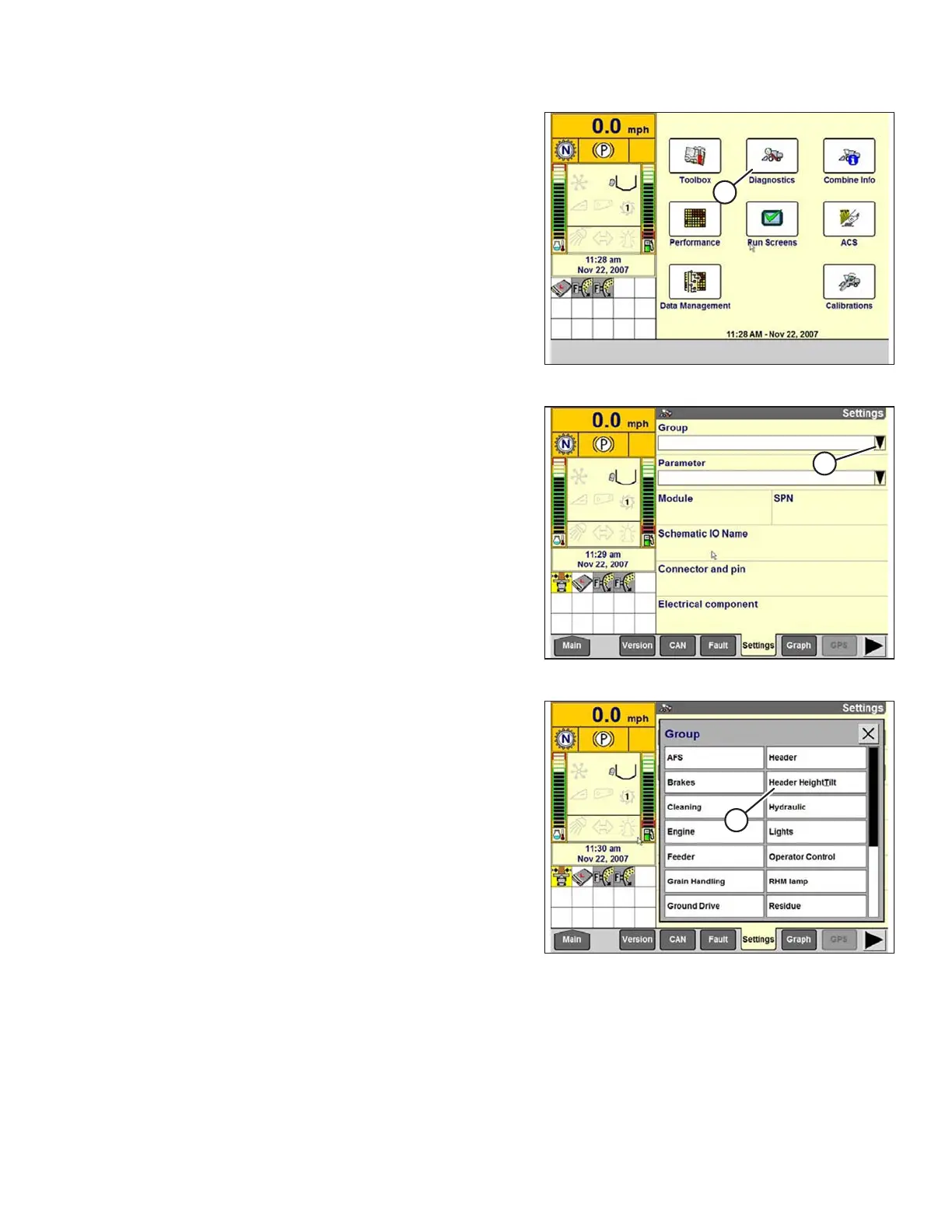

Figure 3.461: New Holland Combine Display
4. Ensure header float is unlocked.
5. Select DIAGNOSTICS (A) on the main screen. The
DIAGNOSTICS screen displays.
6. Select SETTINGS. The SETTINGS screen displays.
1003673
A
Figure 3.462: New Holland Combine Display
7. Select the GROUP drop-down arrow (A). The GROUP
dialog box displays.
1003674
A
Figure 3.463: New Holland Combine Display
8. Select HEADER HEIGHT/TILT (A). The PARAMETER
screen displays.
OPERATION
