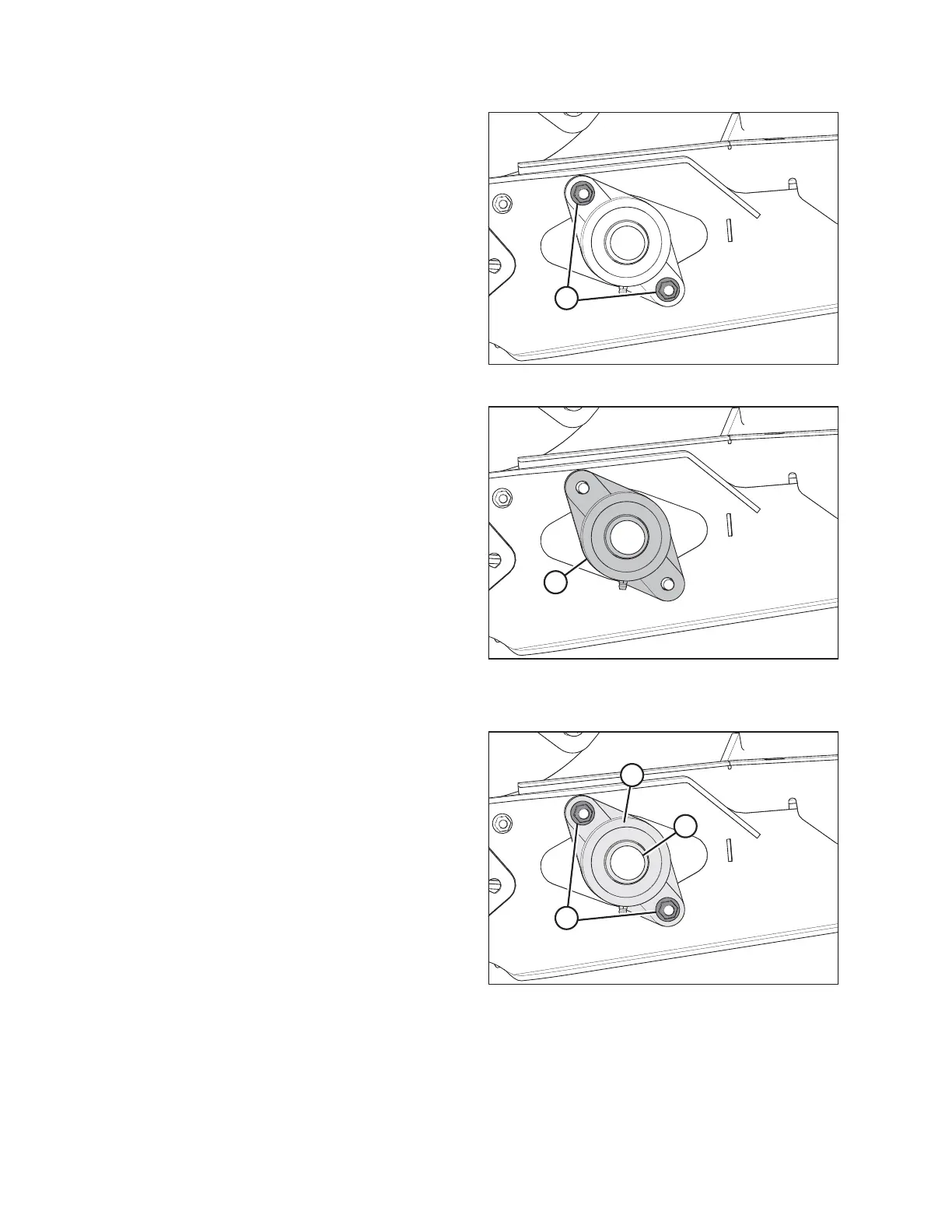

Figure 5.159: Feed Draper Drive Roller Bearing
6. Remove two nuts (A).
Figure 5.160: Feed Draper Drive Roller Bearing
7. Remove bearing housing (A).
NOTE:
If bearing is seized on shaft, it may be easier to remove
the drive roller assembly. For instructions refer to
Removing Feed Draper Drive Roller, page 469.
Installing Feed Draper Drive Roller Bearing
Figure 5.161: Feed Draper Drive Roller Bearing
1. Install the drive roller bearing housing (A) onto the
shaft (B), and secure with two bolts and nuts (C).
MAINTENANCE AND SERVICING
