214683 487 Revision A

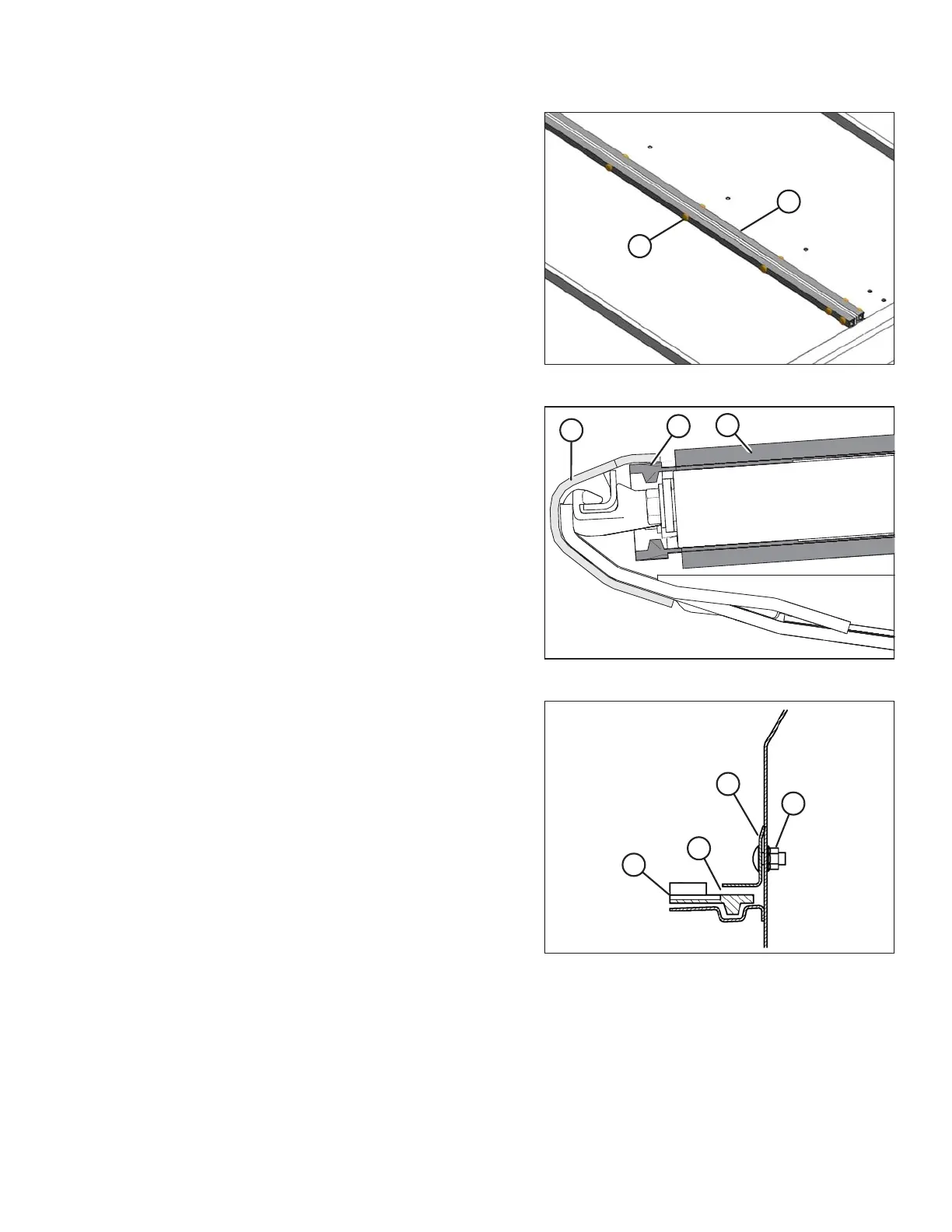

Figure 5.185: Draper Connector
6. Attach the ends of the draper with tube connectors (B),
screws (A) (with the heads facing the center opening),
and nuts.
7. Adjust the draper tension. Refer to 5.14.3 Adjusting
Draper Tension, page 488.
Figure 5.186: Draper Seal
8. Check clearance (A) between drapers (B) and
cutterbar (C). Clearance should be 0–3mm(0–1/8 in.).
Refer to 5.14.5 Adjusting Deck Height, page 492 to
adjust if necessary.
Figure 5.187: Draper Seal
9. If adjustment of the backsheet deflector (A) is required,
loosen nut (D) and move the deflector until there is a
1–7 mm (1/32–5/16 in.) gap (C) between the draper (B)
and the deflector.
10. Operate the drapers with the engine at idle so the talc
or talc/graphite lubricant makes contact and adheres to
the draper seal surfaces.
MAINTENANCE AND SERVICING
