MacDon FlexDraper FD140 - Page 427

214683 403 Revision A
1013273
A
B
C

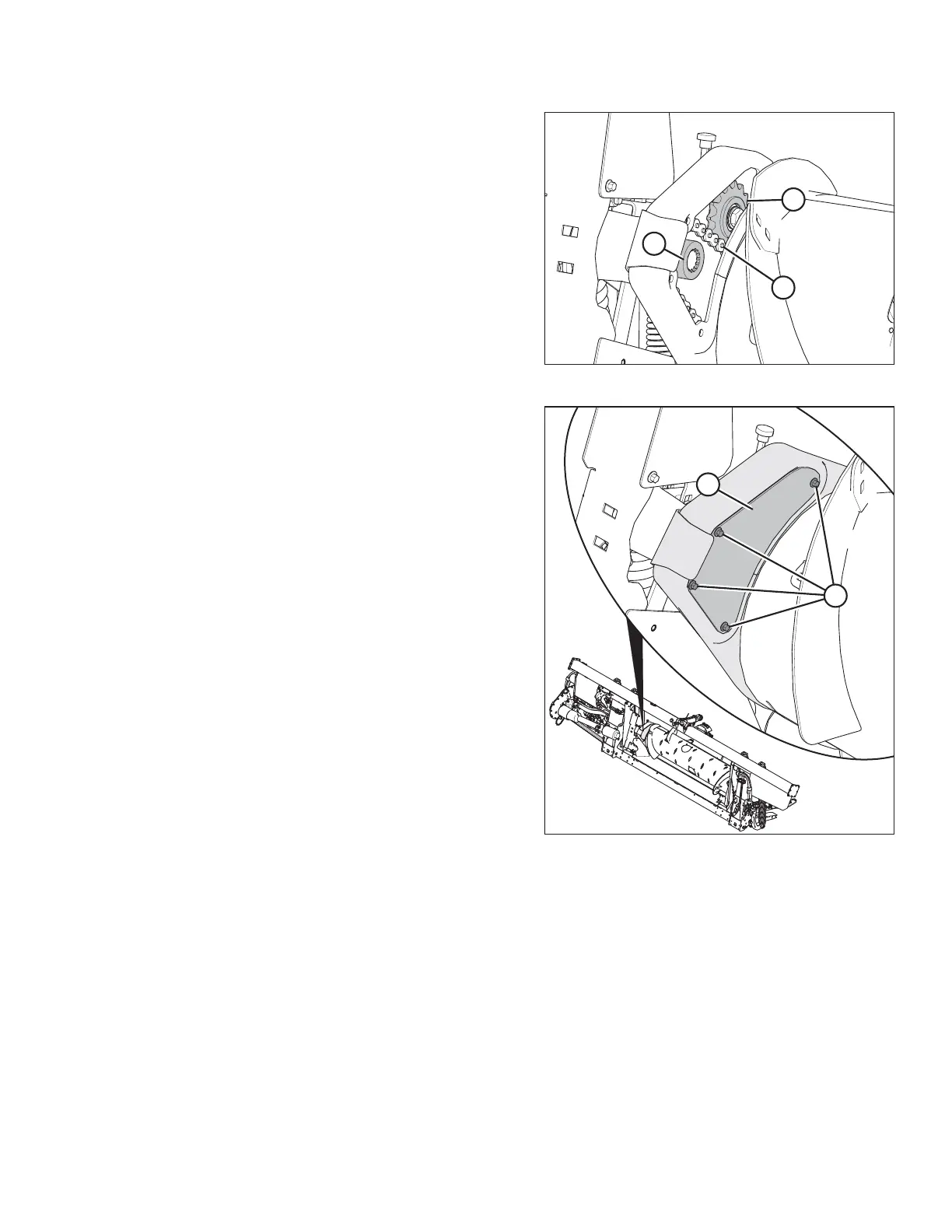

Figure 5.22: Auger Drive Chain
2. Apply a liberal amount of grease to the chain (A), drive
sprocket (B), and idler sprocket (C).
3. Rotate the auger and apply grease to more areas of the
chain, if necessary.
1012538
B
A
Figure 5.23: Auger Drive Inspection Panel
4. Reinstall metal inspection panel (B) and secure with
four bolts (A).
MAINTENANCE AND SERVICING
