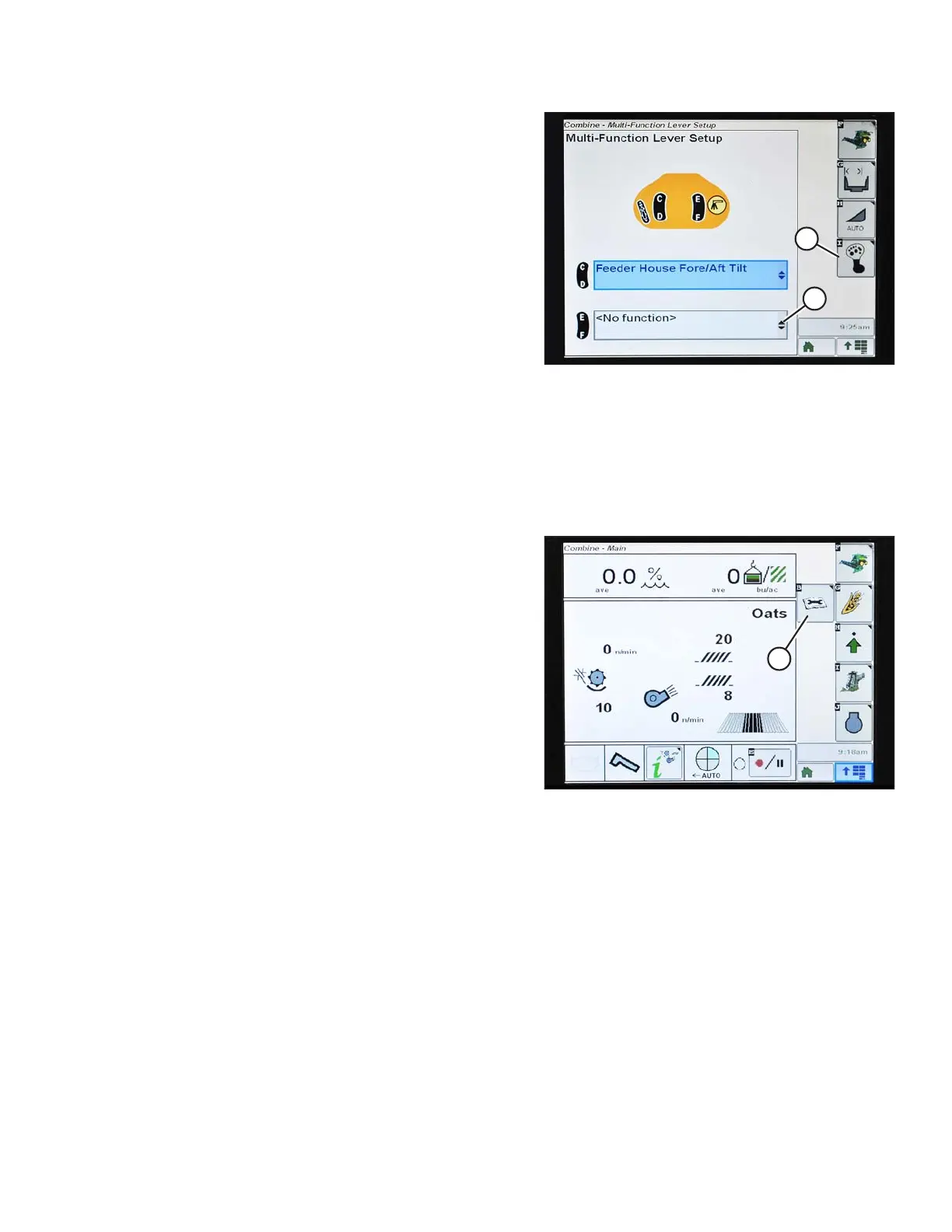

Figure 3.367: John Deere Combine Display
NOTE:
The feeder house fore/aft tilt controls can be changed to
work with buttons E and F by pressing the control handle
icon (A) and then selecting FEEDER HOUSE FORE/AFT
TILT from the drop-down menu (B).
To calibrate the feeder house fore-aft tilt range, follow these steps:
1. Ensure center-link is set to D.
2. Rest header on down stops and unlock float.
3. Place wings in locked position.
Figure 3.368: John Deere Combine Display
4. Press the DIAGNOSTIC icon (A) on the main screen of
the monitor. The CALIBRATION screen displays.
