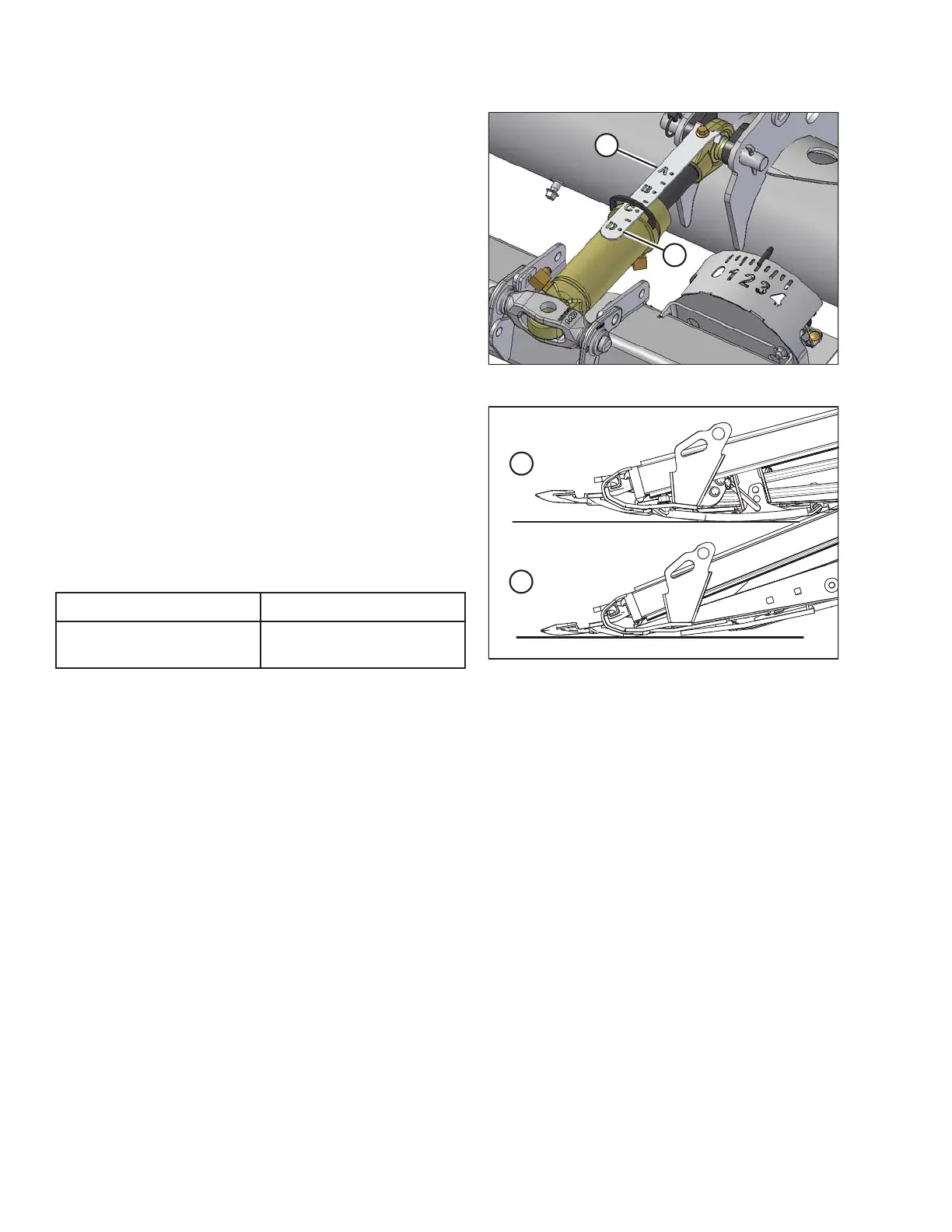

Figure 3.75: Center-Link
1. Set the header angle according to the type and
condition of crop and soil as follows:
a. Use shallower settings (A) (position A on the
indicator) for normal cutting conditions and wet soil
to reduce soil build-up at the cutterbar. Shallow
angle settings also minimize damage to the knife in
stony fields.
b. Use steeper settings (D) (position D on the
indicator) for lodged crops and crops that are close
to the ground such as soybeans.
Figure 3.76: Guard Angles
The shallowest angle (A) (center-link fully retracted)
produces the highest stubble when cutting on the ground.
The steepest angle (D) (center-link fully extended) produces
the lowest stubble when cutting on the ground.
Choose an angle that maximizes performance for your crop
and field conditions. Refer to the table below for a summary
of adjustment ranges.
Table 3.13 FD1 Header Angle
Header Size Guard Angle
9.1–13.7 m
(30–45 ft.)
2.0–7.4°
Refer to 3.6.2 Header Settings, page 43 for recommended header/guard angle settings for your particular crop
conditions.
