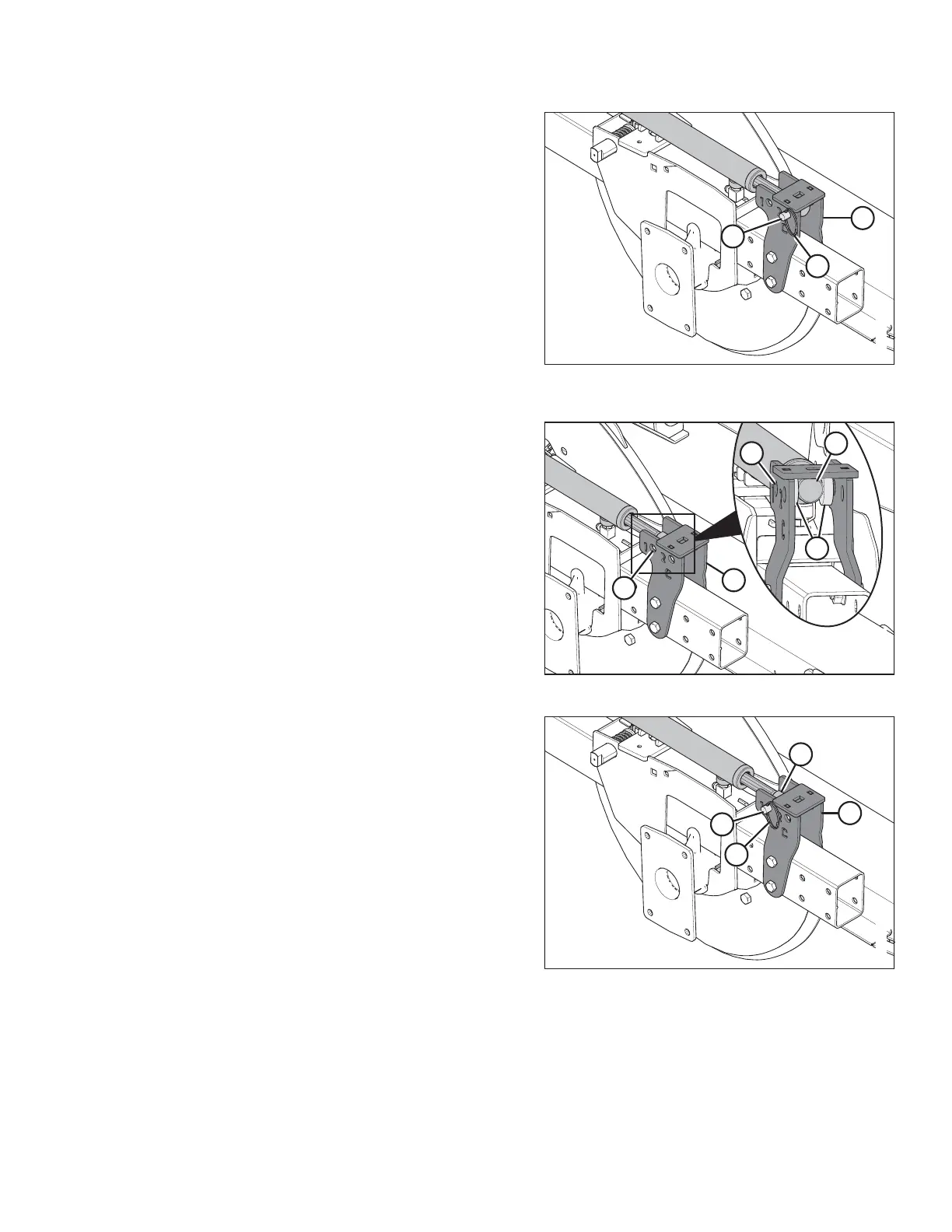

Figure 3.114: Center Reel Arm in Forward
Position
1. Remove the securing ring (A), pin (B), and washers
inside the center arm fore-aft support bracket (C).
Retain washers, pin, and ring.
NOTE:
Washers inside center arm support bracket not shown
in illustration at right.
1024316
B
B
A
C
D
Figure 3.115: Center Reel Arm
2. Push the reel back until the end of the cylinder (A) lines
up with the aft setting holes (B) (position 1) in the fore-
aft support bracket (C). Position washers (D) on both
sides of the cylinder end (A) inside the support
bracket (C).
1024340
B
A
D
C
Figure 3.116: Center Reel Arm in Aft Position
3. Insert pin (A) and secure cylinder (B) and washers in
the center arm support bracket (C). Secure pin (A) with
ring (D).
NOTE:
Washers inside center arm support bracket not shown
in illustration at right.
