214683 122 Revision A

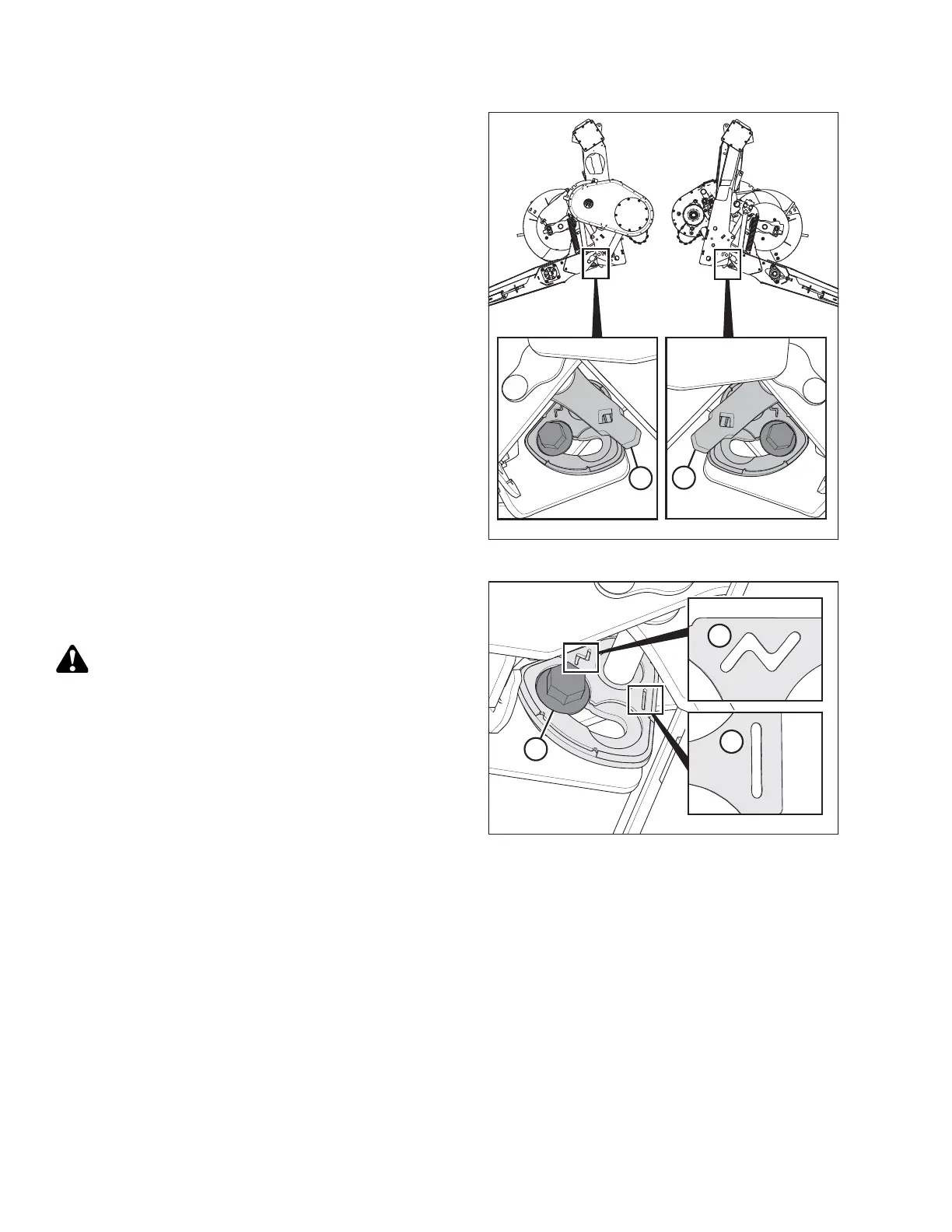

Figure 3.149: Auger Float Adjustment Arms
The auger float adjustment arms (A) are located at the
bottom left and bottom right of the float module.
Figure 3.150: Auger Float Positions
If bolt (A) is next to the floating symbol (B), the auger is in
the floating position. If bolt (A) is next to the fixed
symbol (C), the auger is in the fixed position.
CAUTION
Make sure left and right sides are set to the same
position; the two bolts (A) must be in the same location
to prevent damage to the machine during operation.
To set the auger position, follow these steps:
OPERATION
