MacDon FlexDraper FD140 - Page 167

214683 143 Revision A
1025380
A
B

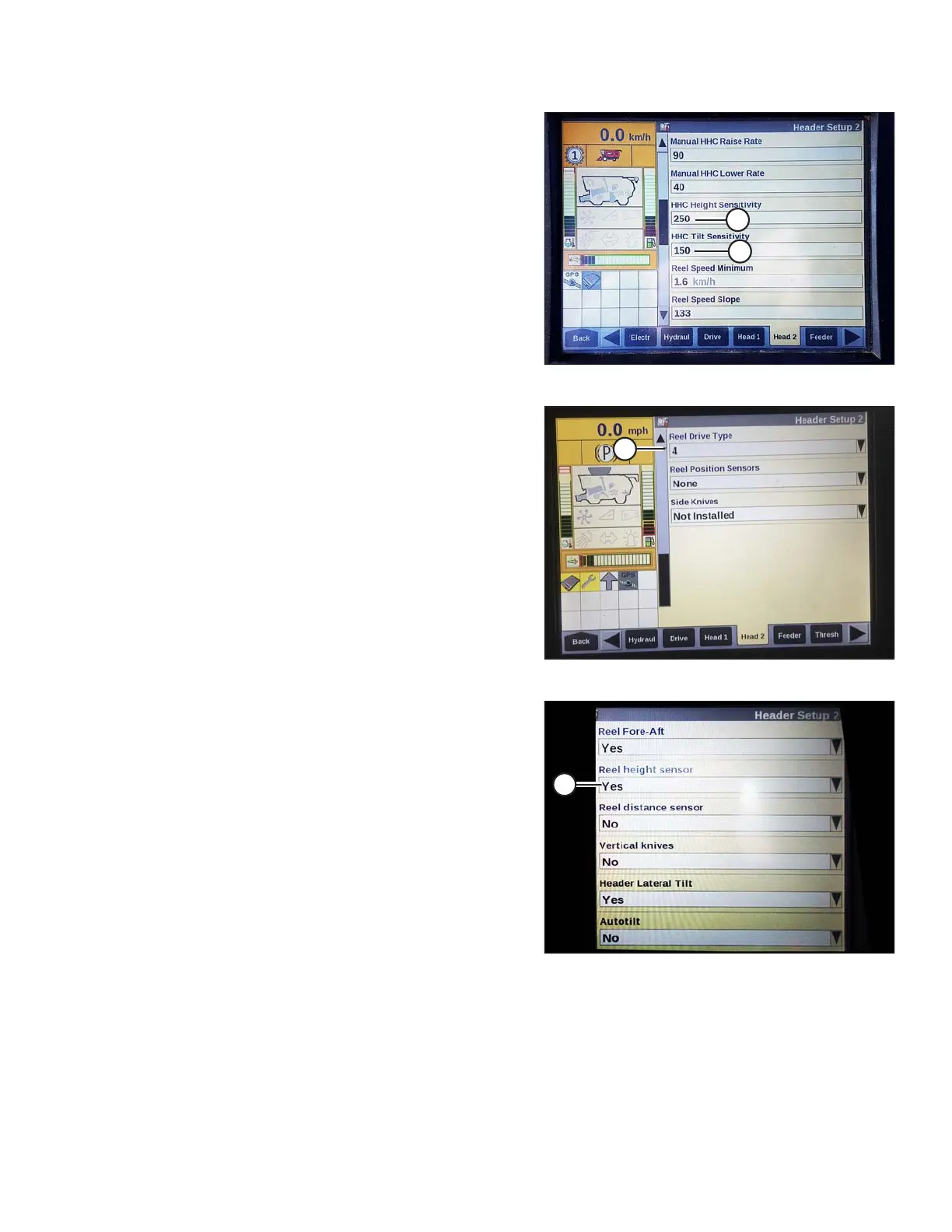

Figure 3.191: Case IH Combine Display
7. Locate the HHC HEIGHT SENSITIVITY field (A), and
set as follows:
• If using a two-sensor system: Set HHC HEIGHT
SENSITIVITY to 250.
• If using a single-sensor system: Set HHC
HEIGHT SENSITIVITY to 180.
NOTE:
If hunting occurs during operation, decrease this setting
by 20 points at a time until hunting no longer occurs.
8. Set the HHC TILT SENSITIVITY (B) to 150. Increase or
decrease as desired.
1023276
A
Figure 3.192: Case IH Combine Display
9. From the REEL DRIVE TYPE menu (A), select
• 4 if you are using a standard 19-tooth drive sprocket
• 5 if you are using an optional high-torque 14-tooth
drive sprocket
• 6 if you are using an optional high-torque 10-tooth
drive sprocket
1023920
A
Figure 3.193: Case IH Combine Display
10. From the REEL HEIGHT SENSOR menu (A),
select YES.
OPERATION
