MacDon FlexDraper FD140 - Page 169

214683 145 Revision A
1015833
A
B

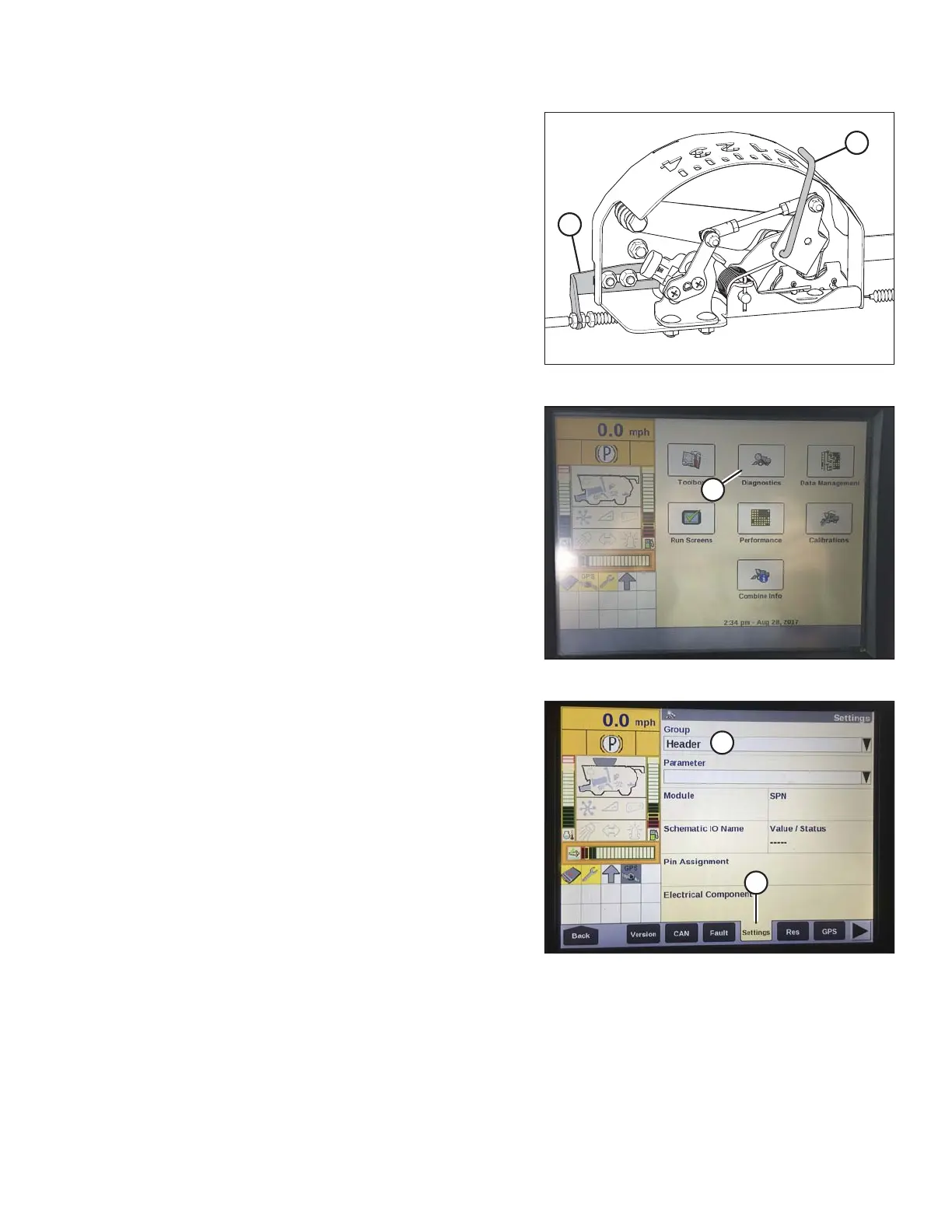

Figure 3.196: Float Indicator Box
3. Adjust cable take-up bracket (B) (if necessary) until
pointer (A) on float indicator is on 0.
4. Ensure header float is unlocked.
1023272
A
Figure 3.197: Case IH Combine Display
5. On the main page of the combine display, select
DIAGNOSTICS (A). The DIAGNOSTICS page opens.
1023271
A
B
Figure 3.198: Case IH Combine Display
6. Select SETTINGS (A). The SETTINGS page opens.
7. From the GROUP menu, select HEADER (B).
OPERATION
