214683 157 Revision A

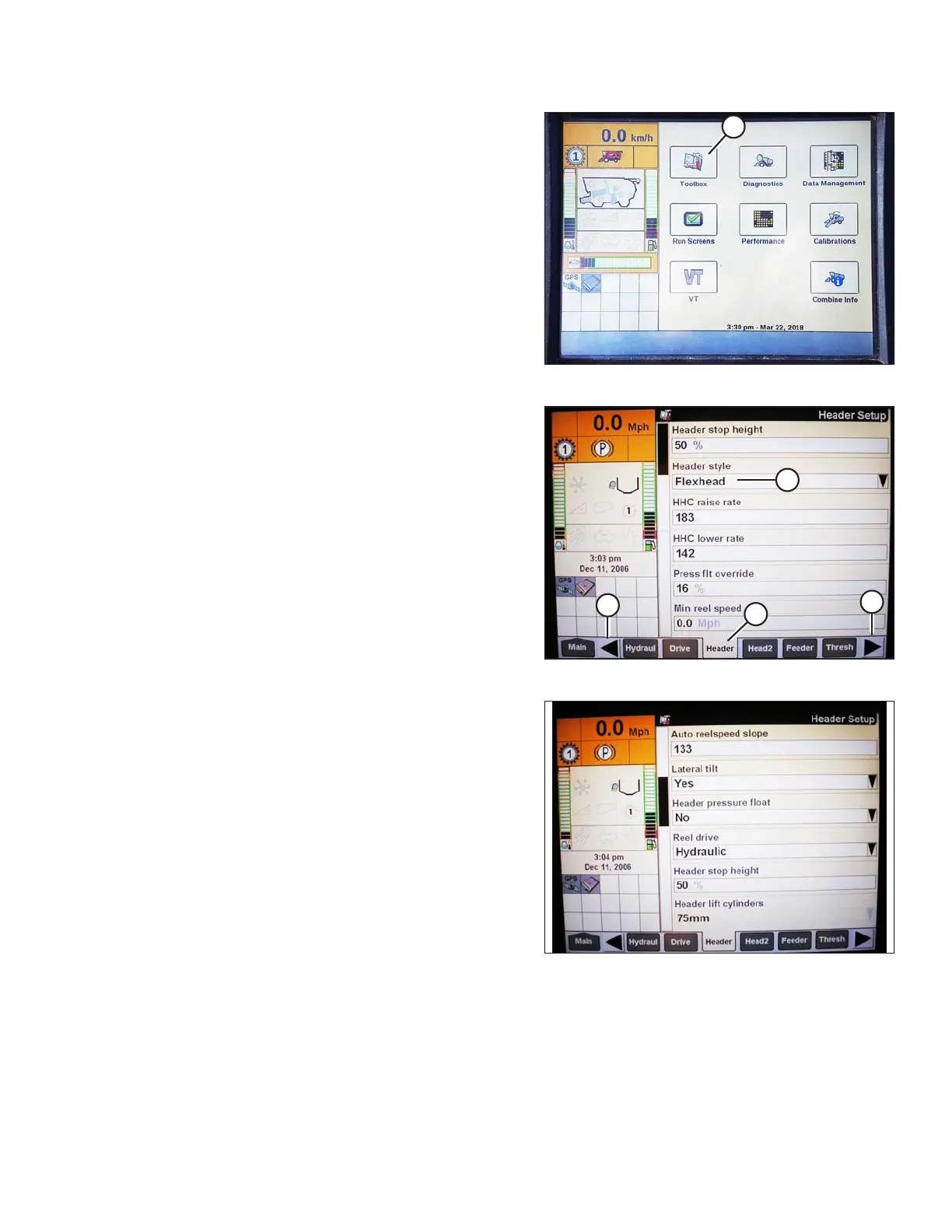

Figure 3.224: Case IH Combine Display
3. Select TOOLBOX (A) on the MAIN page.
Figure 3.225: Case IH Combine Display
4. Select HEADER tab (A).
NOTE:
To locate the HEADER tab, you may need to scroll to
the right using side arrows (C).
5. Set appropriate HEADER STYLE (B).
Figure 3.226: Case IH Combine Display
6. Set AUTO REEL SPEED SLOPE.
7. Set HEADER PRESSURE FLOAT to NO if equipped,
and ensure REEL DRIVE is HYDRAULIC.
OPERATION
