214683 167 Revision A

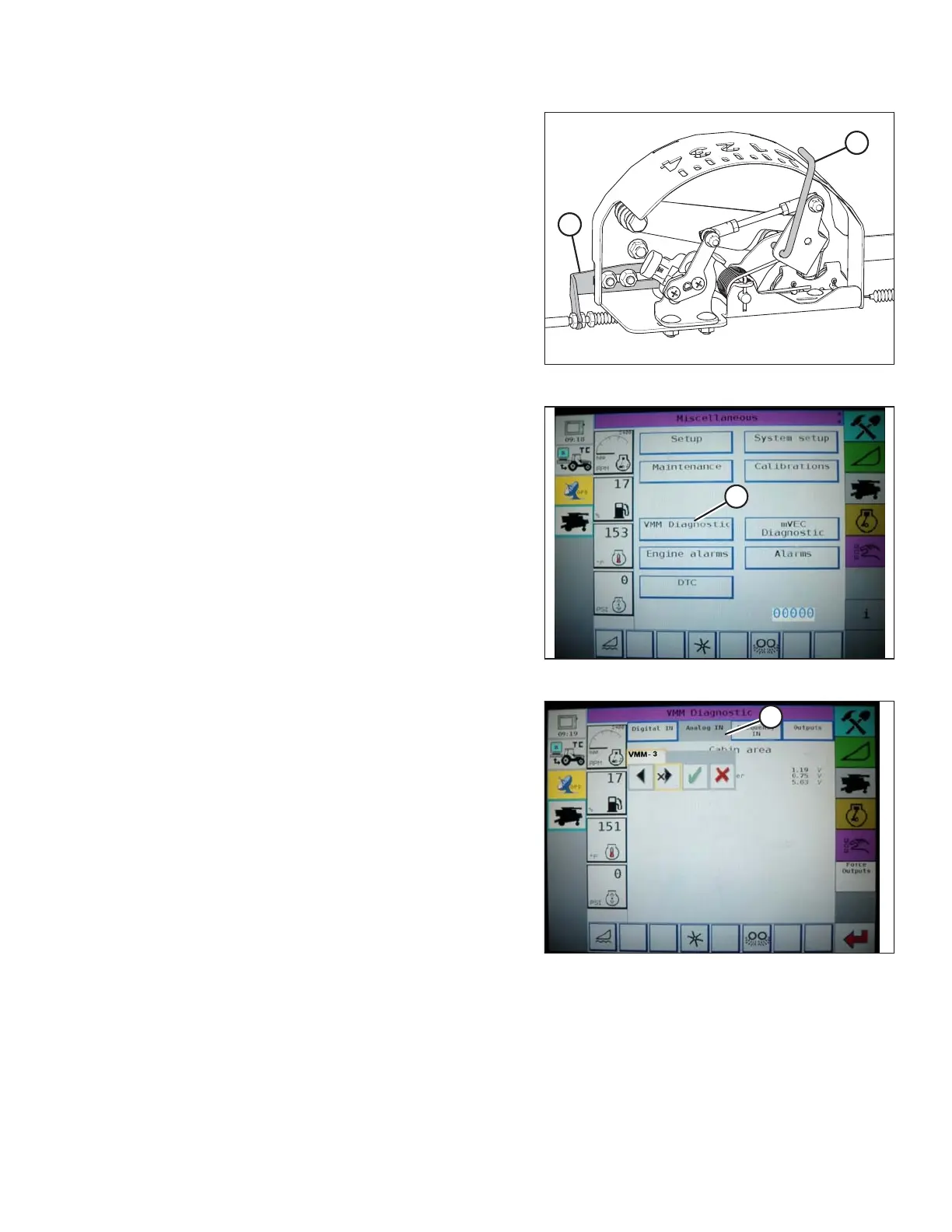

Figure 3.250: Float Indicator Box
3. Adjust the cable take-up bracket (B) (if necessary) until
the pointer (A) on the float indicator is on 0.
Figure 3.251: Challenger Combine Display
4. Go to the FIELD page on the combine monitor, and then
press the diagnostics icon. The MISCELLANEOUS
page displays.
5. Press the VMM DIAGNOSTIC button (A). The VMM
DIAGNOSTIC page displays.
Figure 3.252: Challenger Combine Display
6. Go to the ANALOG IN tab (A), and then select VMM
MODULE 3 by pressing the text box below the four
tabs. The voltage from the AHHC sensor is now
displayed on page as HEADER HEIGHT RIGHT POT
and HEADER HEIGHT LEFT POT. The readings may
be slightly different.
OPERATION
