214683 191 Revision A

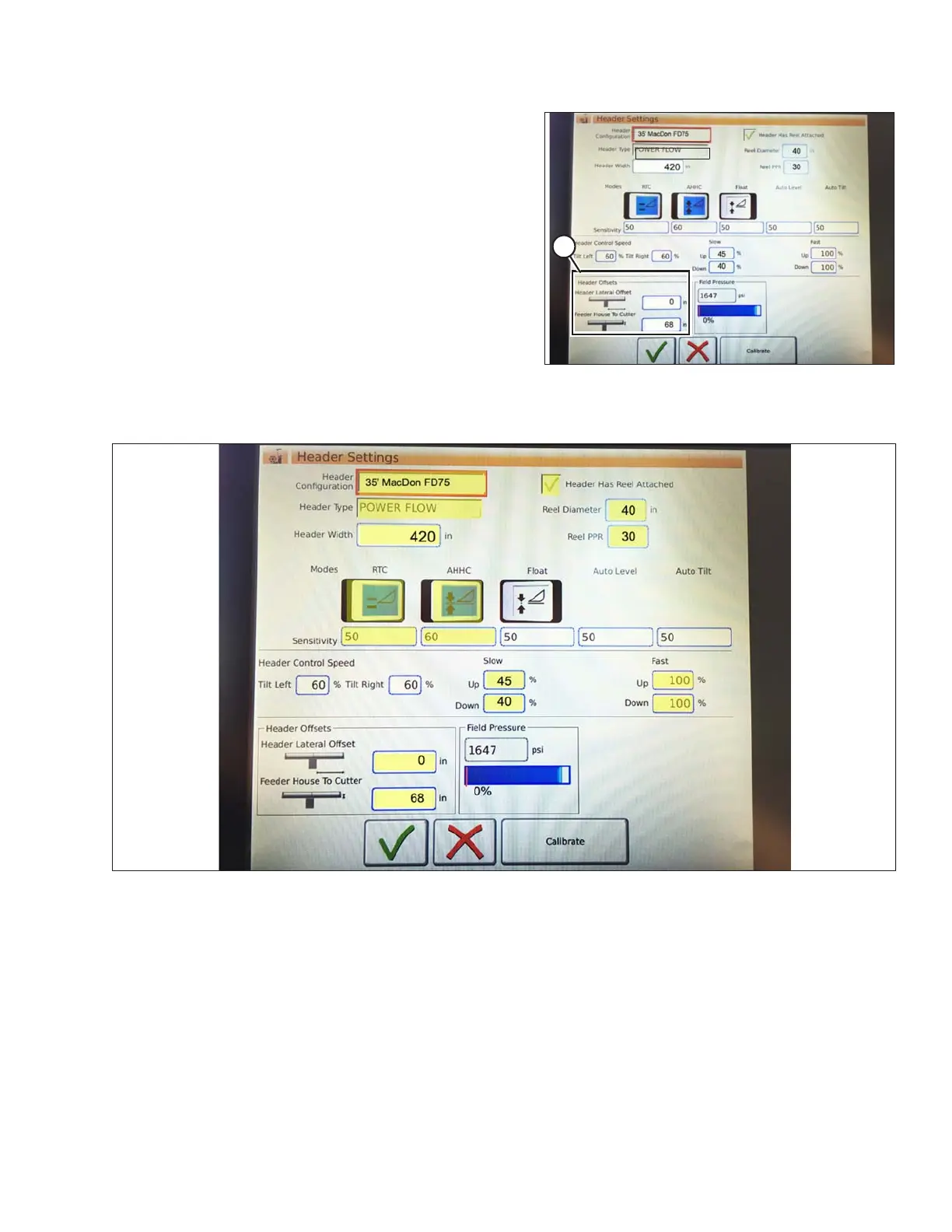

Figure 3.295: Header Offset Settings
4. Header Offsets (A): Offset distances are important for
yield mapping. There are two adjustable dimensions on
the HEADER SETTINGS screen:
• Header Lateral Offset: the distance between the
centerline of the header and the centerline of the
machine. This should be set at 0 for a MacDon
header.
• Feeder House to Cutter: the distance from the
machine interface to the cutterbar. This should be
set at 68 for a MacDon header.
Figure 3.296: MacDon Header Settings Inputs
OPERATION
