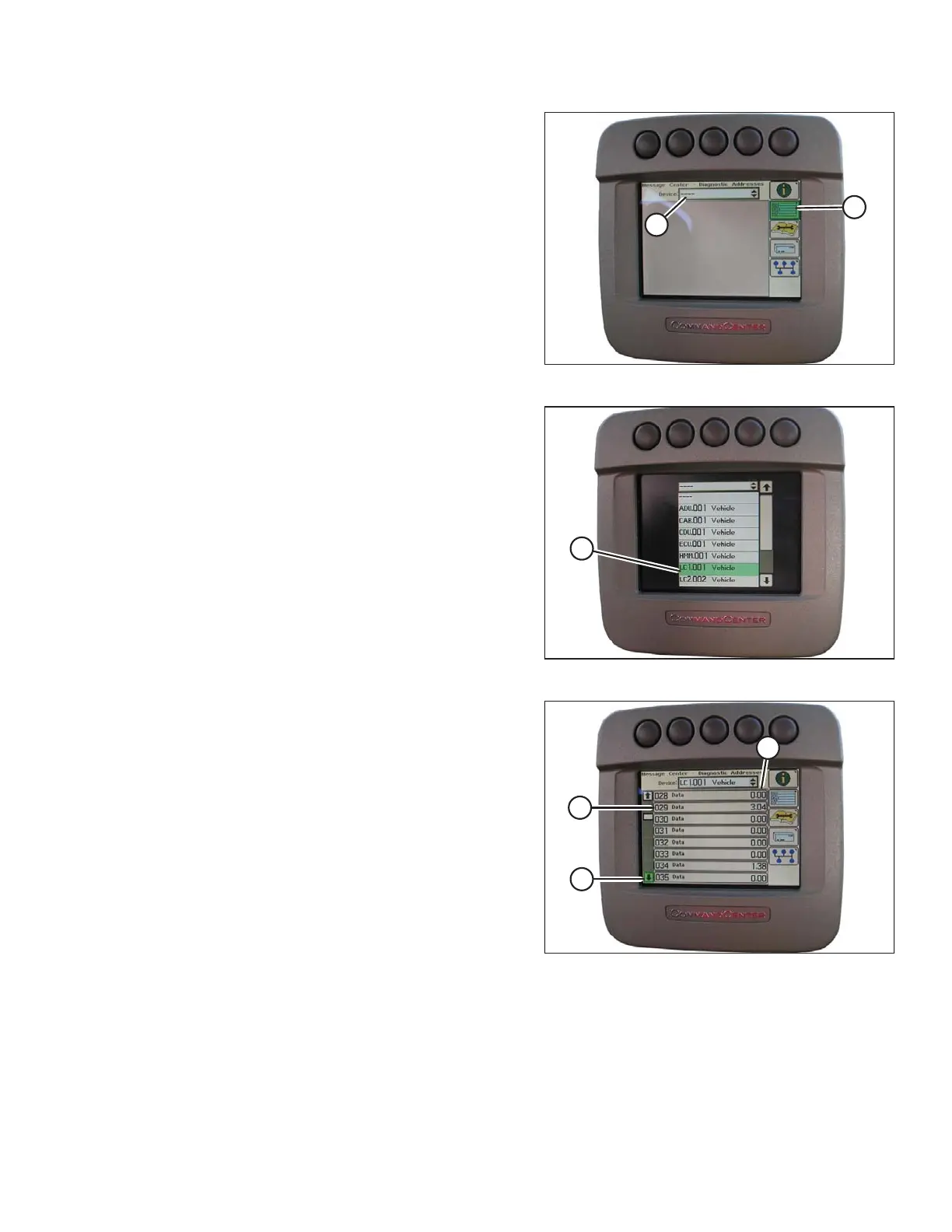

Figure 3.329: John Deere Combine Display
7. Use the scroll knob to highlight DIAGNOSTIC
ADDRESSES (A) from the right column and select it by
pressing the check mark button.
8. Use the scroll knob to highlight the drop-down box (B)
and press the check mark button to select it.
1003572
A
Figure 3.330: John Deere Combine Display
9. Use the scroll knob to highlight LC 1.001 VEHICLE (A)
and press the check mark button to select it.
1003573
B
A
C
Figure 3.331: John Deere Combine Display
10. Use the scroll knob to highlight the down arrow (A) and
press the check mark button to scroll through the list
until 029 DATA (B) is displayed and voltage reading (C)
appears on the monitor.
11. Ensure header float is unlocked.
12. Start the combine and fully lower feeder house to the ground.
NOTE:
You may need to hold the HEADER DOWN switch for a few seconds to ensure the feeder house is fully
lowered.
