214683 279 Revision A

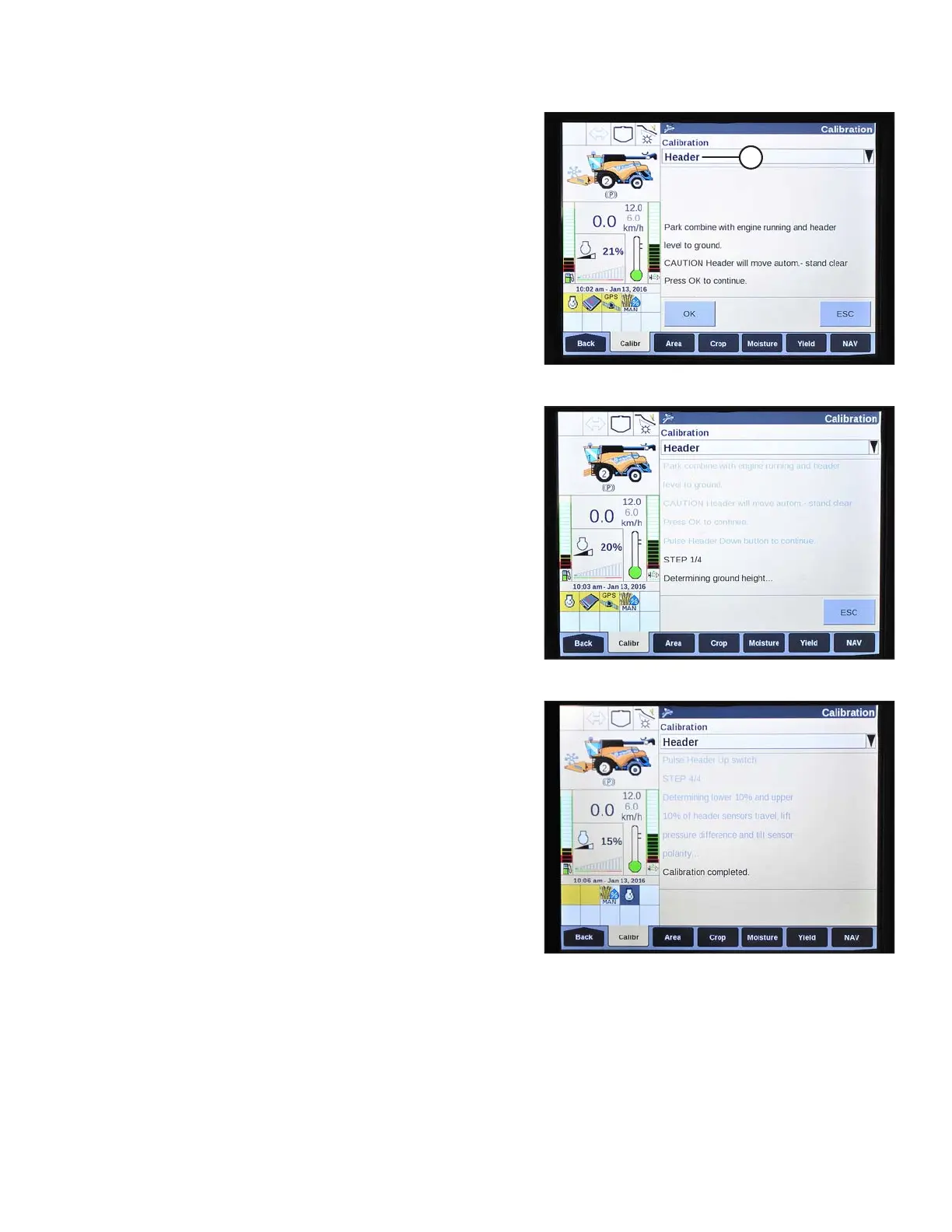

Figure 3.493: New Holland Combine Display
3. Select HEADER (A) from the list of calibration options.
Figure 3.494: New Holland Combine Display
4. Follow the calibration steps in the order in which they
appear on the screen. As you proceed through the
calibration process, the display will automatically
update to show the next step.
NOTE:
Pressing the ESC key during any of the steps or letting
the system sit idle for more than 3 minutes will cause
the calibration procedure to stop.
NOTE:
Refer to your combine operator’s manual for an
explanation of any error codes.
Figure 3.495: New Holland Combine Display
5. When all steps have been completed, CALIBRATION
COMPLETED message is displayed on the screen.
NOTE:
If float was set heavier to complete AHHC calibration
procedure, adjust to recommended operating float after
the calibration is complete.
OPERATION
