To convert to Narrow configuration from Medium or Wide configuration , refer to 4.1.3 Converting from
Medium Configuration or Wide Configuration to Narrow Configuration, page 315.
To convert to Narrow configuration from Ultra Narrow configuration, refer to 4.1.4 Converting from
Ultra Narrow Configuration to Narrow Configuration, page 317.

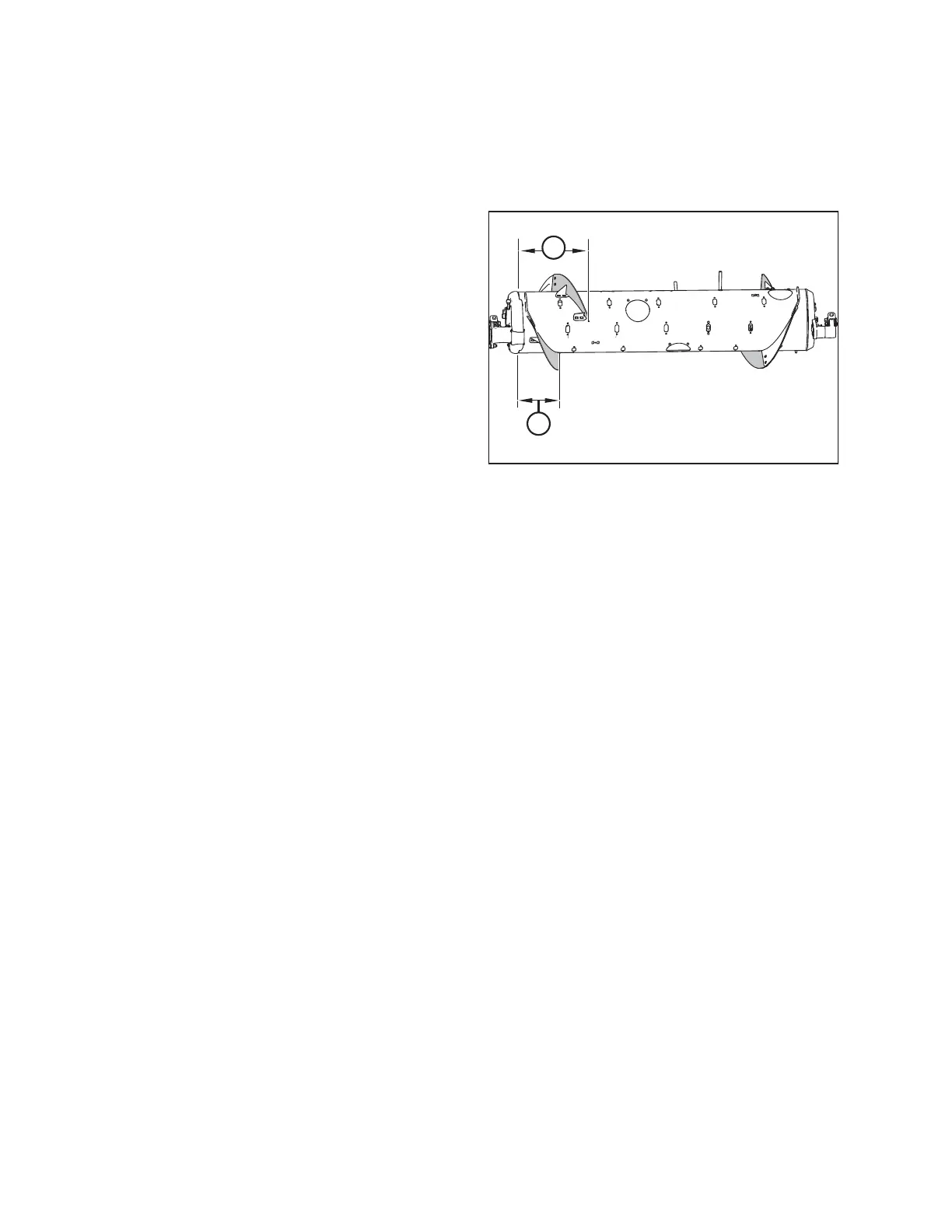

Figure 4.2: Medium Configuration (Rear View)
A - 410 mm (16-1/8 in.) B - 260 mm (10-1/4 in.)
NOTE:
Dimensions are the same for both ends of the
auger. They should be within 15 mm (9/16 in.) of
the numbers given.
Medium configuration is a standard configuration for the
following combines:
• Case (5/6/7088, 7/8010, 7/8/9120, 5/6/7130, 7/8/9230,
5/6/7140, 7/8/9240)
• Challenger (66/67/680B, 54/560C, 54/560E)
• CLAAS (56/57/58/590R, 57/58/595R,
62/63/64/65/66/670, 73/74/75/76/77/780)
• John Deere (95/96/97/9860, 95/96/97/9870,
S65/66/67/68/690, T670)
• Massey Ferguson (96/97/9895, 9520/40/60,
9545/65, 9380)
• New Holland CR (970/980, 9070/9080, 8090/9090,
X.90, X.80)
• New Holland CX (8X0, 80X0, 8.X0, 8080/8090
Elevation)
• Versatile (RT490)
To convert to Medium configuration from Narrow or Ultra Narrow configuration, refer to 4.1.1 Converting
from Ultra Narrow Configuration or Narrow Configuration to Medium Configuration, page 310.
To convert to Medium configuration from Wide configuration, refer to 4.1.2 Converting from Wide
Configuration to Medium Configuration, page 313.
