214683 338 Revision A

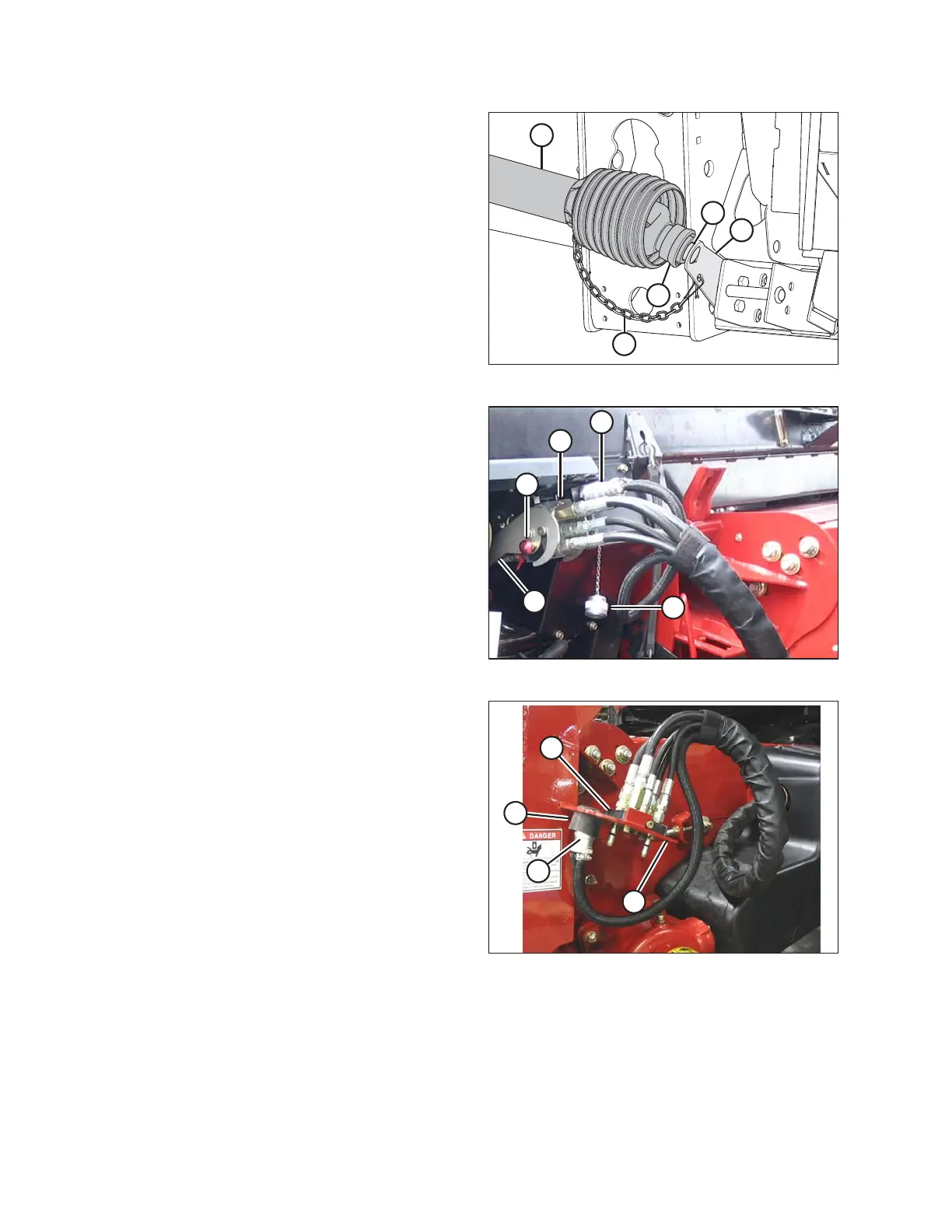

Figure 4.62: Driveline
5. Store the driveline (A) on the driveline support
bracket (B) by pulling back the collar (C) on the driveline
and fitting it over the support bracket weldment (D).
Release the collar so it locks into place over the
weldment.
6. Attach safety chain (E) to support bracket (B).
Figure 4.63: Multicoupler
7. Remove the electrical connector (A) and replace the
cover (B).
8. Push in the lock button (C) and pull the handle (D) to
release the multicoupler (E).
Figure 4.64: Multicoupler Storage
9. Position the multicoupler (A) onto the storage plate (B)
on the combine.
10. Place the electrical connector (C) in the storage
cup (D).
HEADER ATTACHMENT/DETACHMENT
