214683 349 Revision A

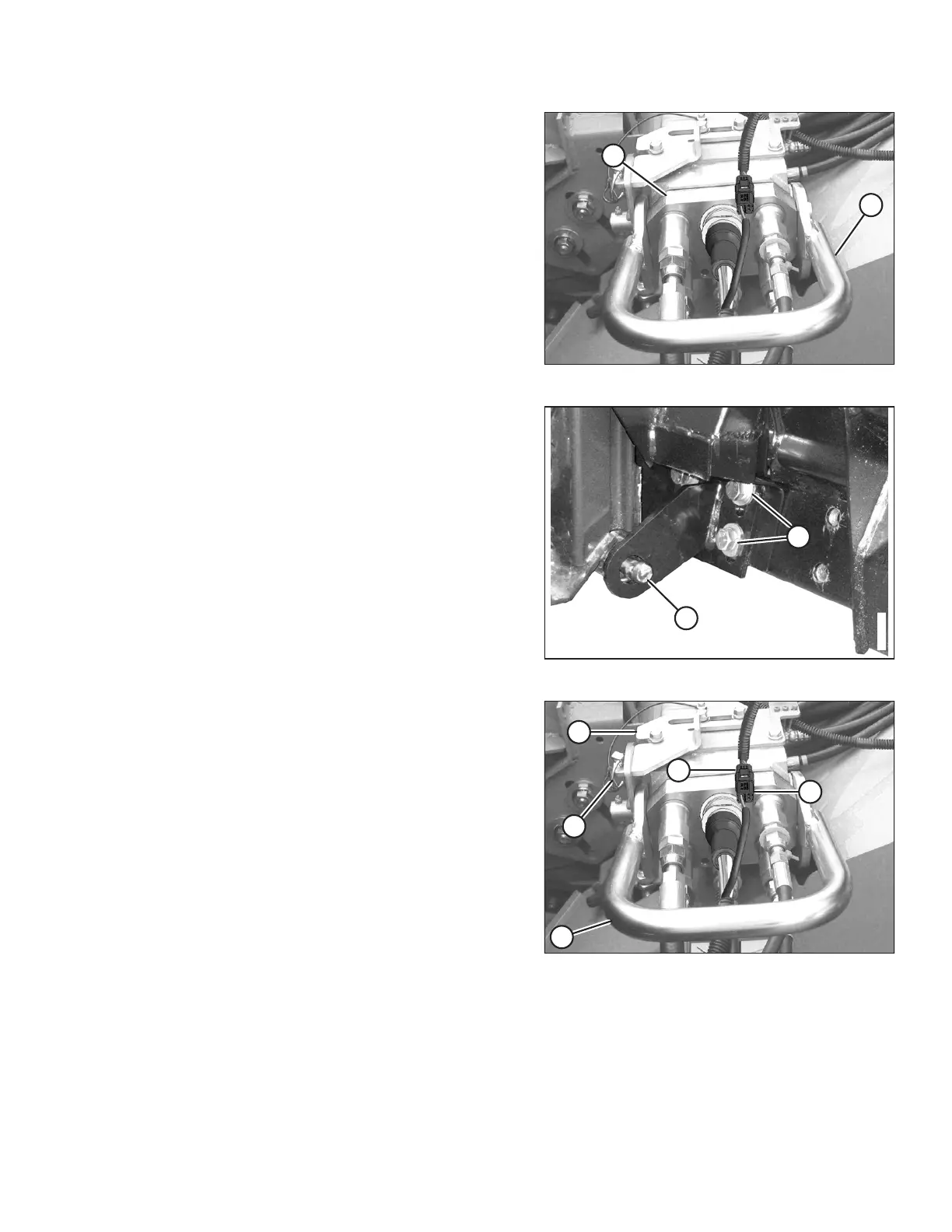

Figure 4.88: Multicoupler
6. Position the multicoupler (A) onto the receptacle, and
pull the handle (B) to engage the lugs on the
multicoupler into the handle.
7. Pull the handle (B) to a horizontal position and ensure
the multicoupler (A) is fully engaged into the receptacle.
Figure 4.89: Feeder House Pin
8. Ensure that both feeder house pins (A) are fully
engaged into the float module brackets.
NOTE:
If the pins (A) do not fully engage the float module
brackets, loosen the bolts (B) and adjust the bracket as
required.
9. Tighten bolts (B).
Figure 4.90: Multicoupler
10. Slide the latch (A) to lock the handle (B) in position and
secure with the lynch pin (C).
11. If the float module is equipped with the reel
fore-aft/header tilt selector, connect the harness (D) to
the combine connector (E).
HEADER ATTACHMENT/DETACHMENT
