MacDon FlexDraper FD140 - Page 454

214683 430 Revision A
1017298
A
B

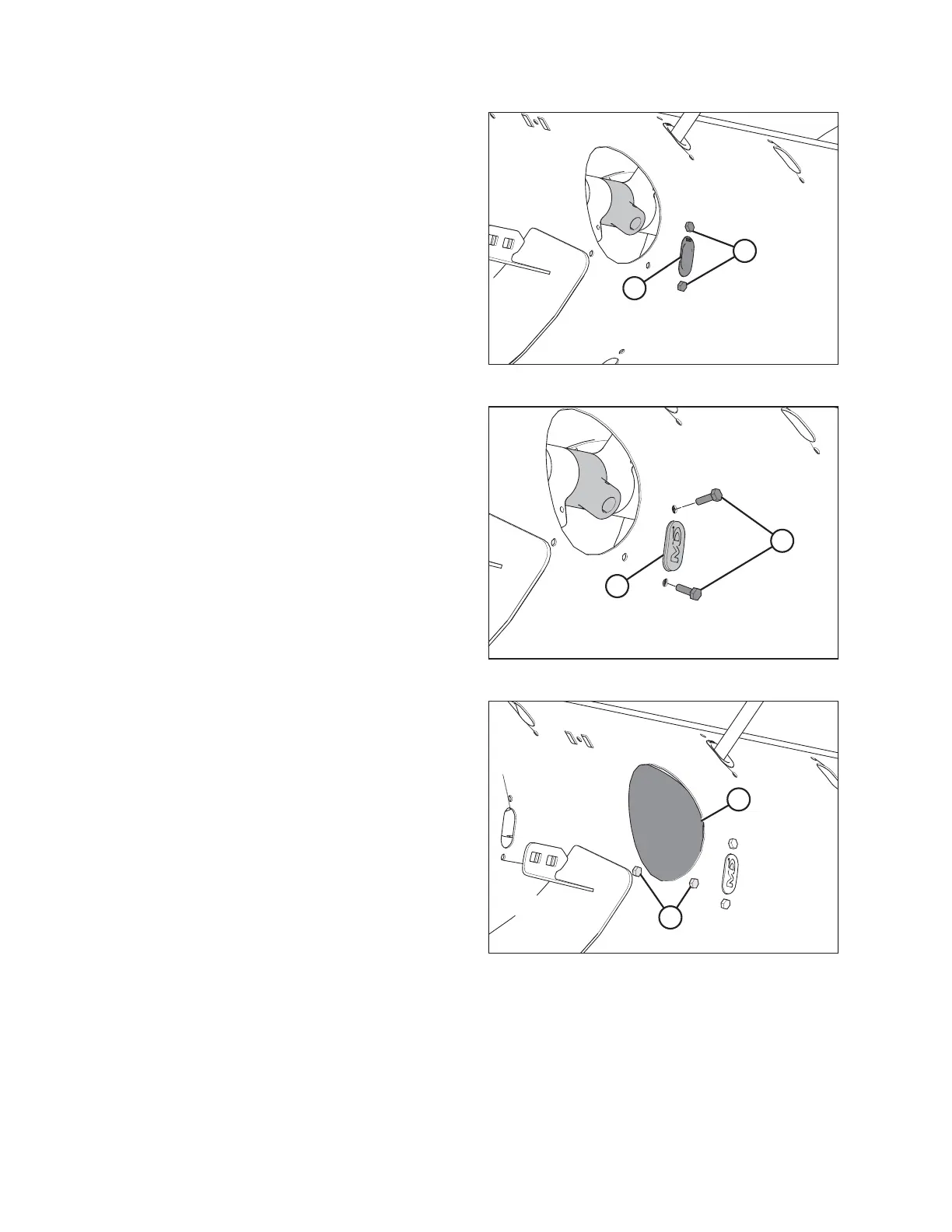

Figure 5.69: Auger Finger Hole
6. Remove the bolts (A) and tee nuts securing the plastic
guide (B) to the auger, and remove the guide from
inside the auger.
1017305
B
A
Figure 5.70: Plug
7. Coat bolts (B) with medium-strength threadlocker
(Loctite
®
243 or equivalent), and then position plug (A)
into the hole from inside the auger, and secure with two
bolts (B) and tee nuts. Torque to 8.5 Nm (75 lbf∙in).
1019338
B
A
Figure 5.71: Auger Access Hole Cover
8. Coat bolts (A) with medium-strength threadlocker
(Loctite
®
243 or equivalent) and replace the access
cover (B) using the bolts to secure the access cover in
place. Torque bolts to 8.5 Nm (75 lbf∙in).
MAINTENANCE AND SERVICING
