214683 436 Revision A

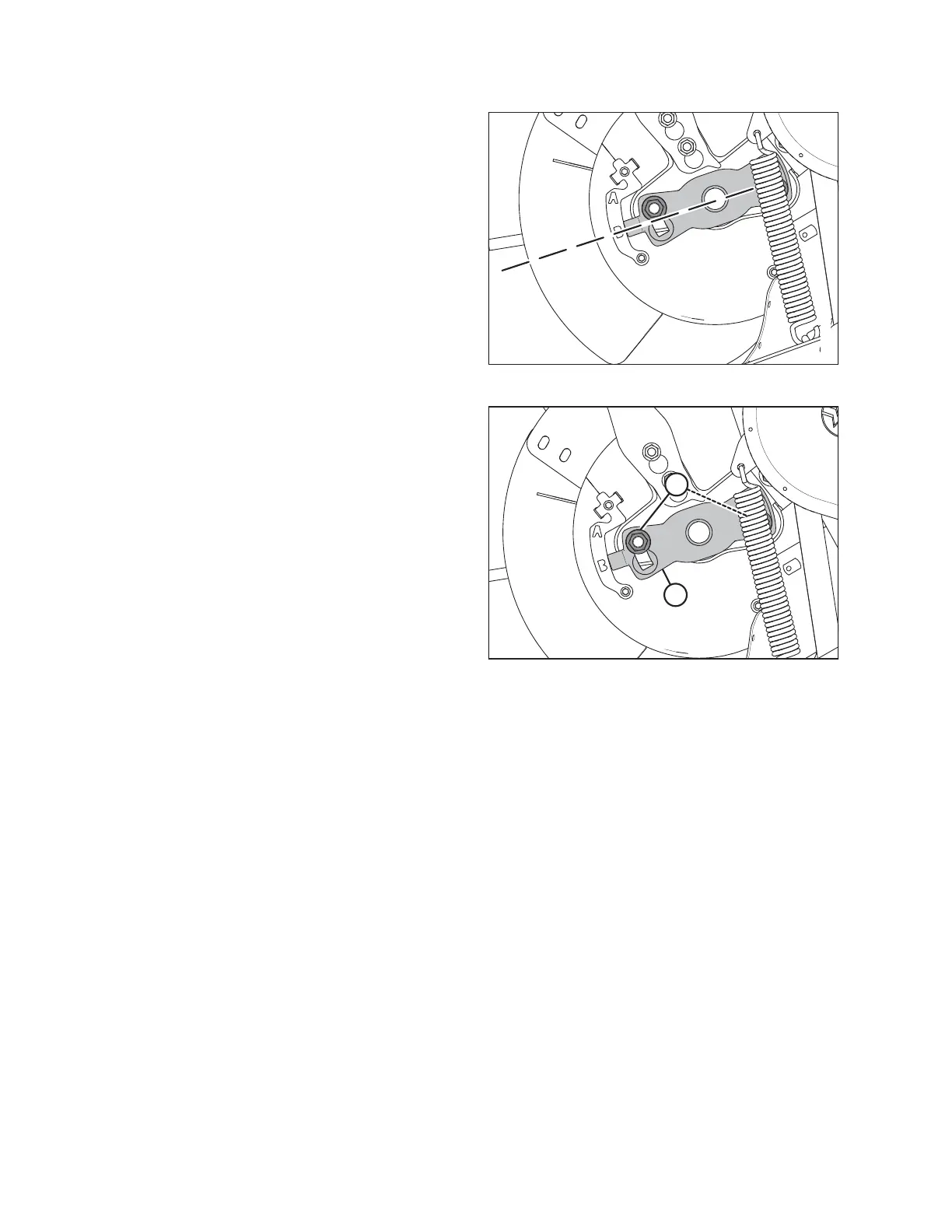

Figure 5.83: Auger Setting B
NOTE:
If the indicator is pointing at setting B, it indicates that at
that point the auger fingers will be fully extended. This
allows the crop to be engaged and released later before
entering the feeder house. This setting is best used for
grains or beans.
Figure 5.84: Auger Tine Timing Indicator
7. Tighten nuts (A) once adjustment is complete. Torque
nuts to 92–138 Nm (68– 10 lbf·ft).
8. Disengage reel safety props. Refer to Disengaging Reel
Safety Props, page 32.
MAINTENANCE AND SERVICING
