MacDon FlexDraper FD140 - Page 519

214683 495 Revision A
1020642
A

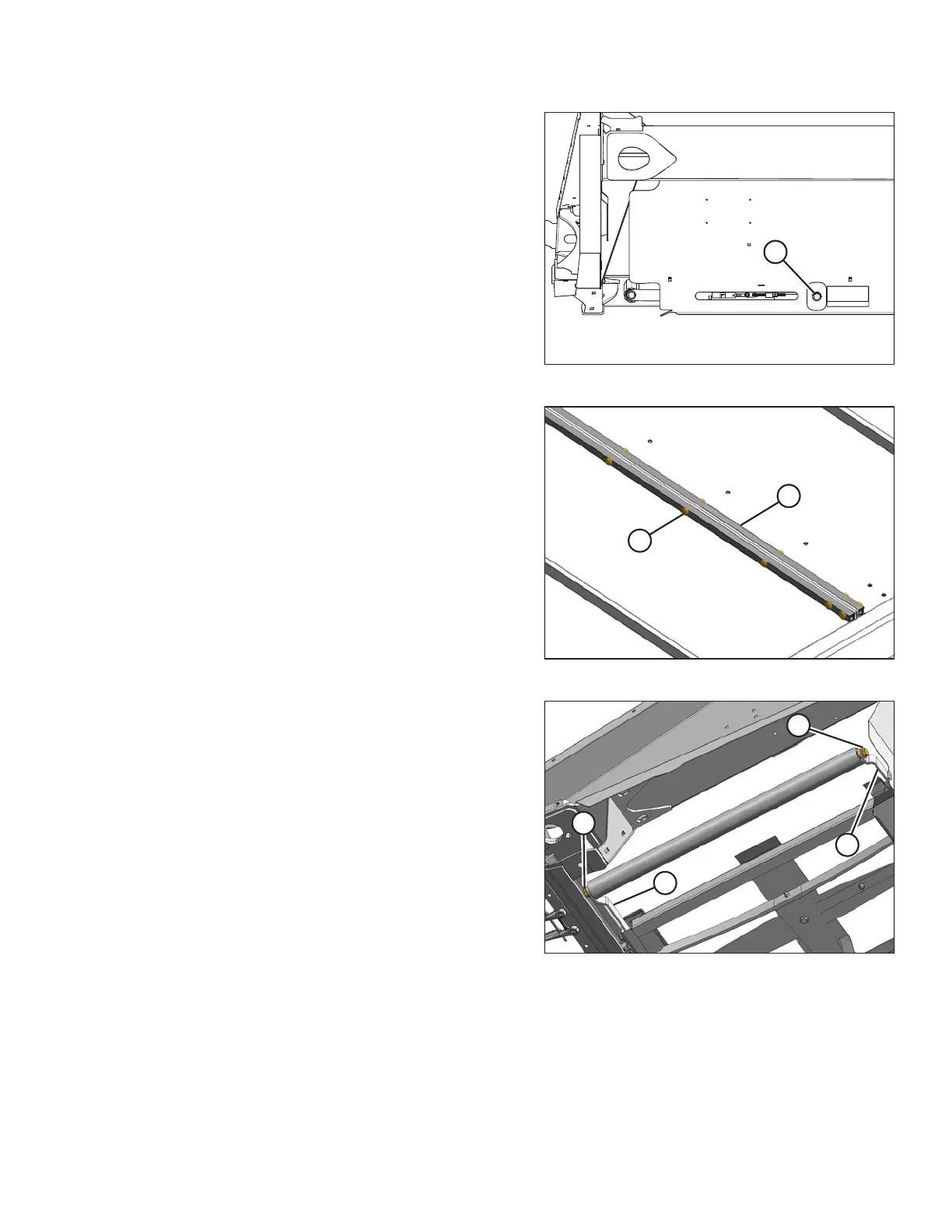

Figure 5.202: Tensioner
1. Start the engine, raise the header, and raise the reel.
2. Shut down the combine, and remove the key from the
ignition.
3. Engage the reel safety props, and engage the header
safety props.
4. Loosen the draper by turning adjuster bolt (A)
counterclockwise.
1010063
A
B
Figure 5.203: Draper Connector
5. Remove the screws (A), tube connectors (B), and nuts
from the draper joint to uncouple the draper.
6. Pull the draper off the idler roller.
1009591
A
B
C
A
Figure 5.204: Idler Roller
7. Remove the bolts (A) and washer at both ends of the
idler roller.
NOTE:
Remove the bolt at the back of the deck first. This will
give you extra room to access the bolt under the
cutterbar.
8. Spread the roller arms (B) and (C), and remove the idler
roller.
MAINTENANCE AND SERVICING
