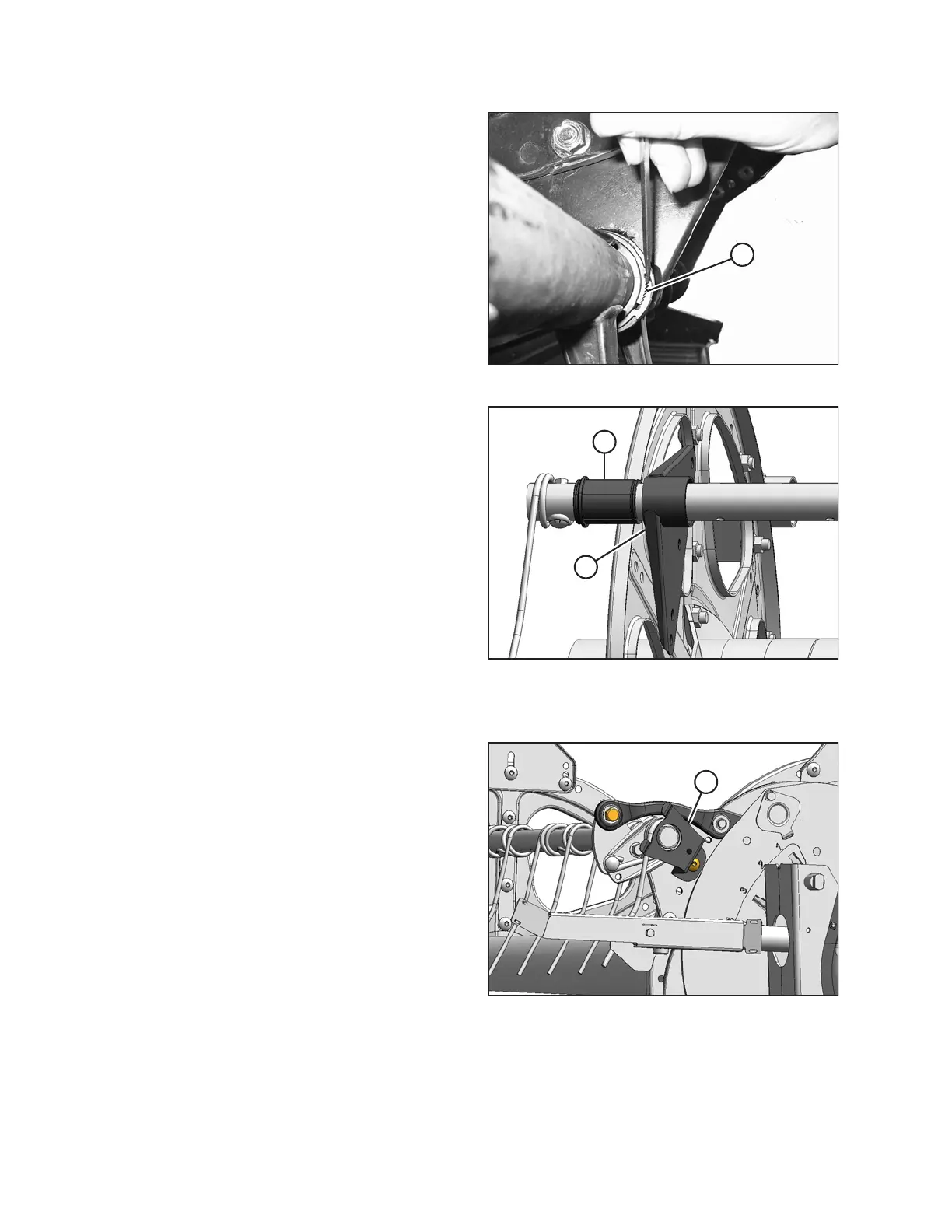

Figure 5.237: Bushing Clamp
5. Release the bushing clamps (A) using a small
screwdriver to separate the serrations. Pull the clamp
off the tine tube.
Figure 5.238: Bushing
6. Rotate tine tube arm (A) until clear of the disc and slide
the arm inboard off of bushing (B).
7. Remove the bushing halves (B). If required, remove the
next tine or plastic finger so the arm can slide off the
bushing. Refer to the following procedures as
necessary:
• Removing Plastic Fingers, page 509
• Removing Steel Fingers, page 507
Cam end bushings
Figure 5.239: Cam End
8. Remove the endshields and endshield support (A) at
the applicable tine tube location on the cam end.
NOTE:
Removing cam end bushings requires the tine tube be
moved through the disc arms to expose the bushing.
MAINTENANCE AND SERVICING
