214683 518 Revision A

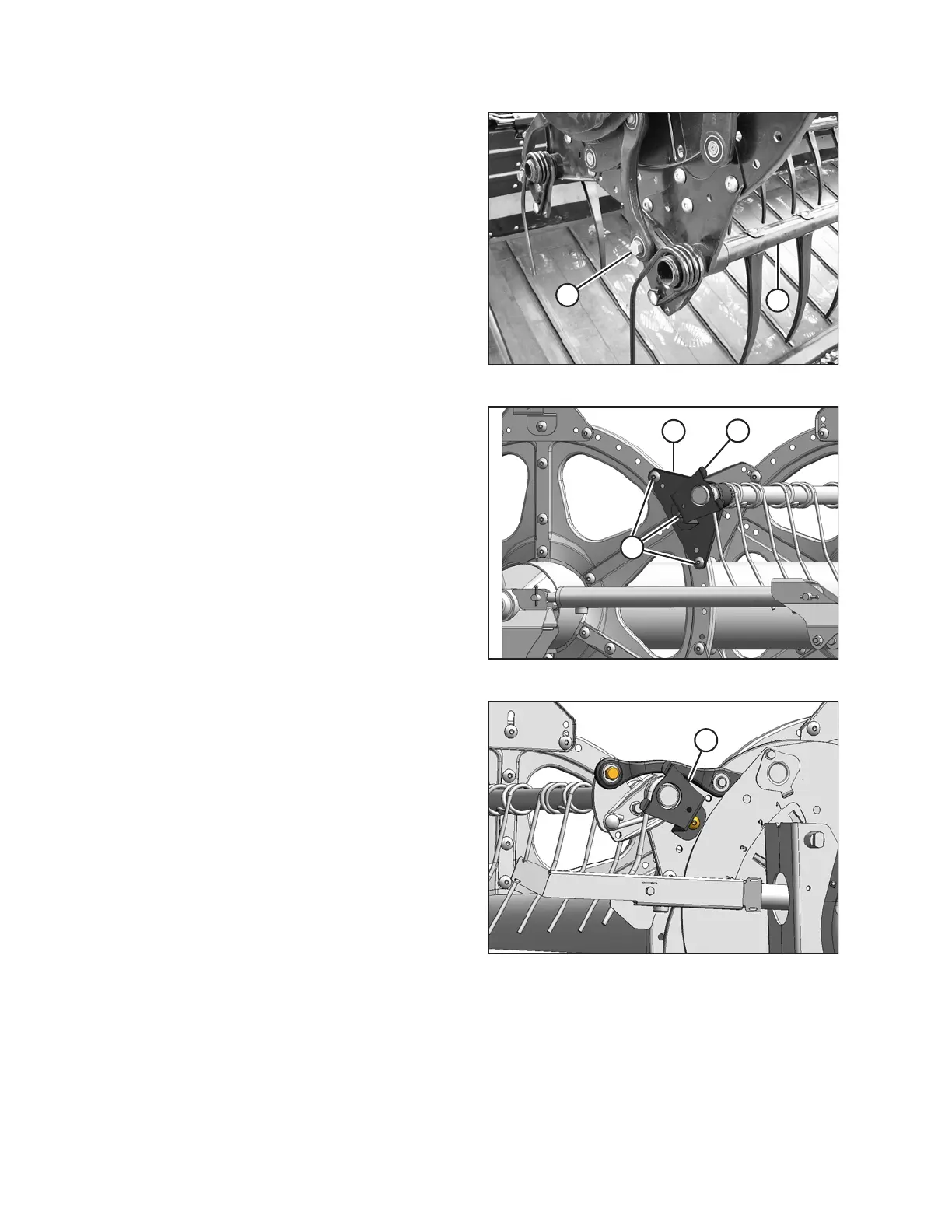

Figure 5.254: Cam End
7. Line up the tine tube (B) with the cam arm and install
bolt (A). Torque bolt to 165 Nm (120 lbf·ft).
Figure 5.255: Tail End
8. Install the bolts (A) securing tine tube arm (B) to the
center disc.
9. Install tine tube arm (B) and endshield support (C) to
the tail end of the reel at the applicable tine tube
location and secure with bolts (A).
NOTE:
There are no endshields on the center discs.
Figure 5.256: Cam End
10. Install the endshield support (A) at the applicable tine
tube location at the cam end.
11. Reinstall the reel endshields. Refer to Replacing Reel
Endshields, page 523.
MAINTENANCE AND SERVICING
