MacDon FlexDraper FD140 - Page 544

214683 520 Revision A
1004614
B
C
A

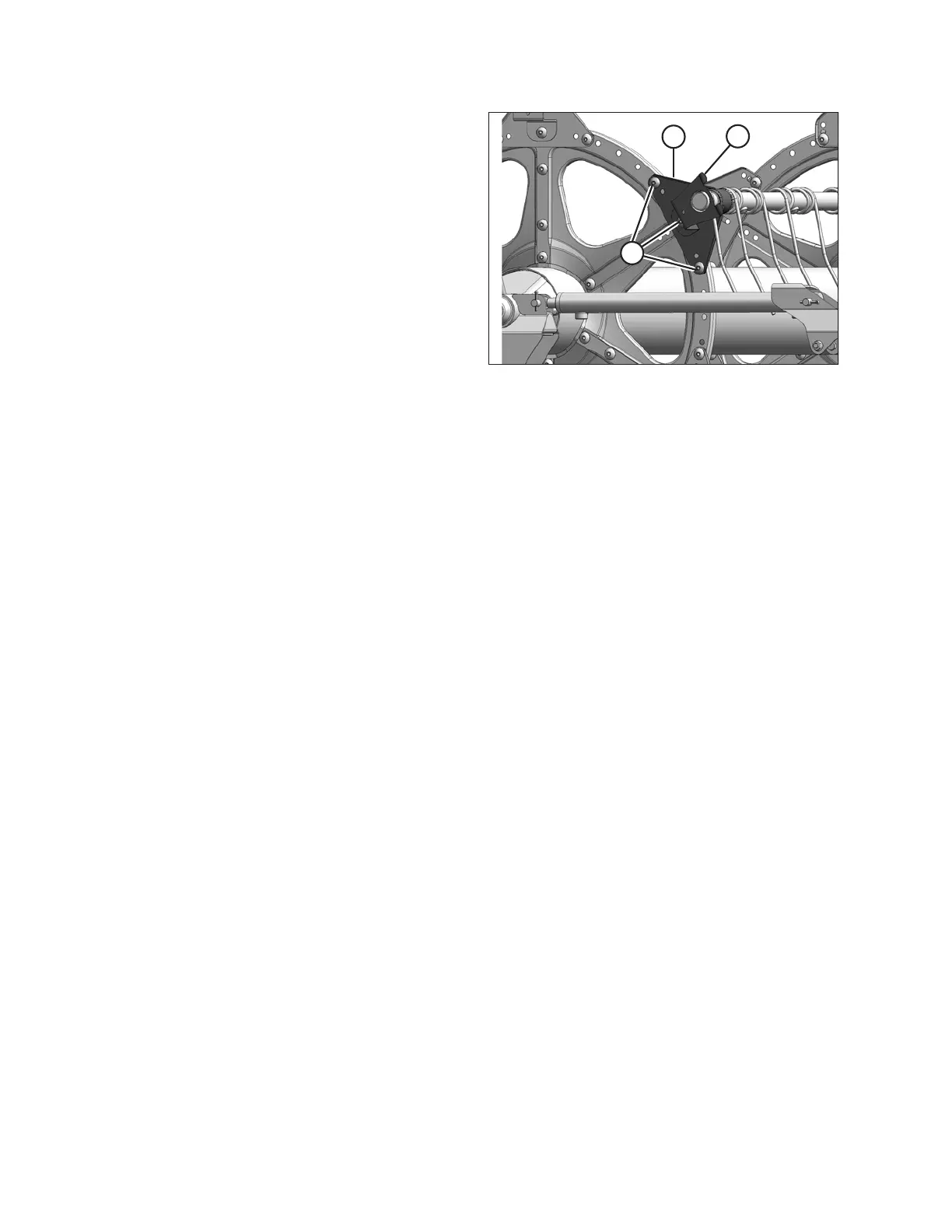

Figure 5.260: Tail End
18. Install the bolts (A) securing tine tube arm (B) to the
center disc.
19. Install tine tube arm (B) and endshield support (C) to
the tail end of the reel at the applicable tine tube
location and secure with bolts (A).
NOTE:
There are no endshields on the center discs.
MAINTENANCE AND SERVICING
