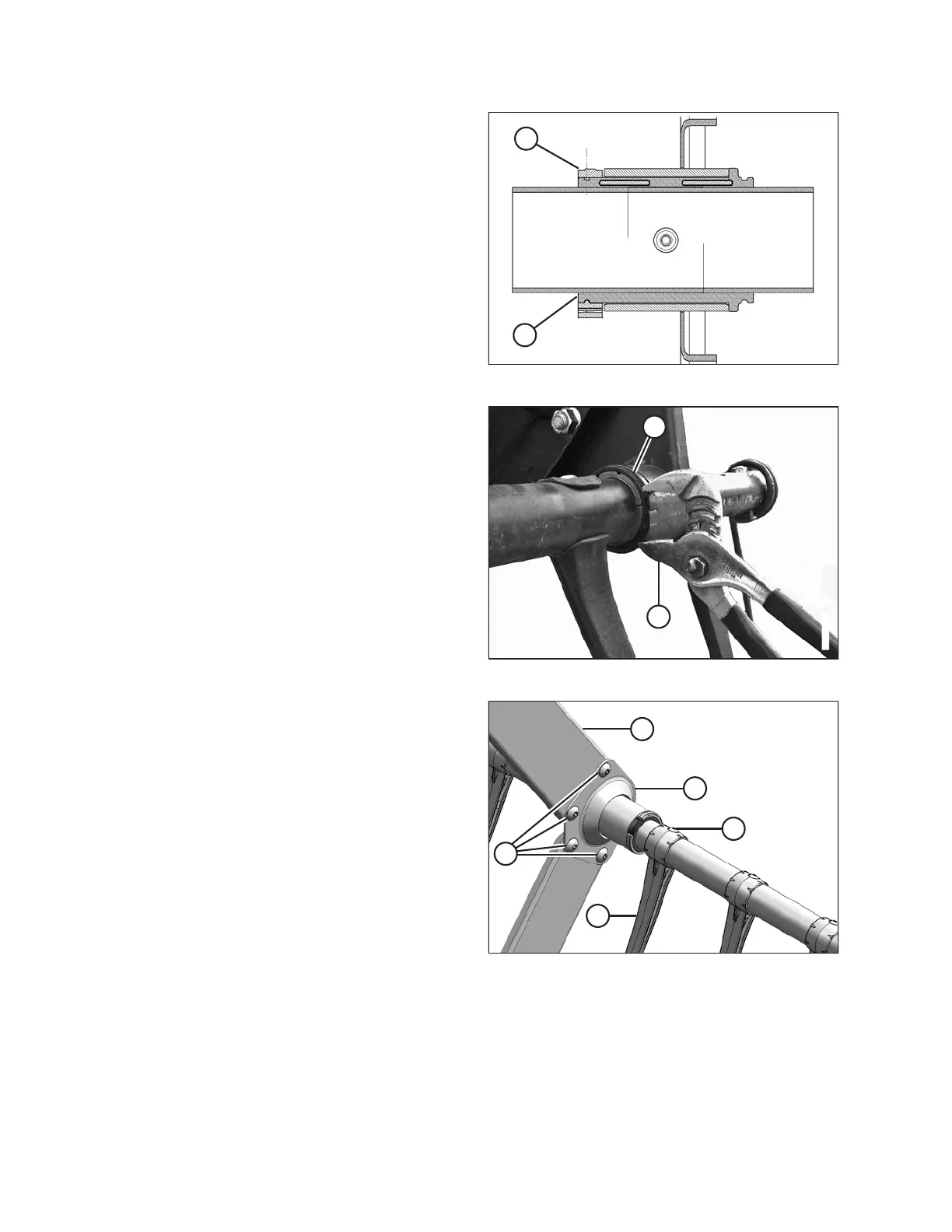

Figure 5.264: Bushing
23. Install the bushing clamp (A) onto the tine tube adjacent
to the flangeless end of the bushing (B).
24. Position the clamp (A) on the bushing (B) so the edges
of the clamp and bushing are flush when the clamp is fit
into the groove on the bushing and the lock tabs are
engaged.
Figure 5.265: Installing Clamp
25. Tighten the clamp (A) using modified channel lock
pliers (B) until finger pressure will NOT move the clamp.
IMPORTANT:
Overtightening clamp may result in breakage.
Figure 5.266: Support
26. Reattach the channels (C) to the three right-facing
supports (A) on each reel with screws (B) and nuts.
Torque screws to 43 Nm (32 lbf∙ft).
27. Using screws (E), reinstall any fingers (D) that were
previously removed. Refer to Installing Plastic Fingers,
page 510.
