214683 524 Revision A

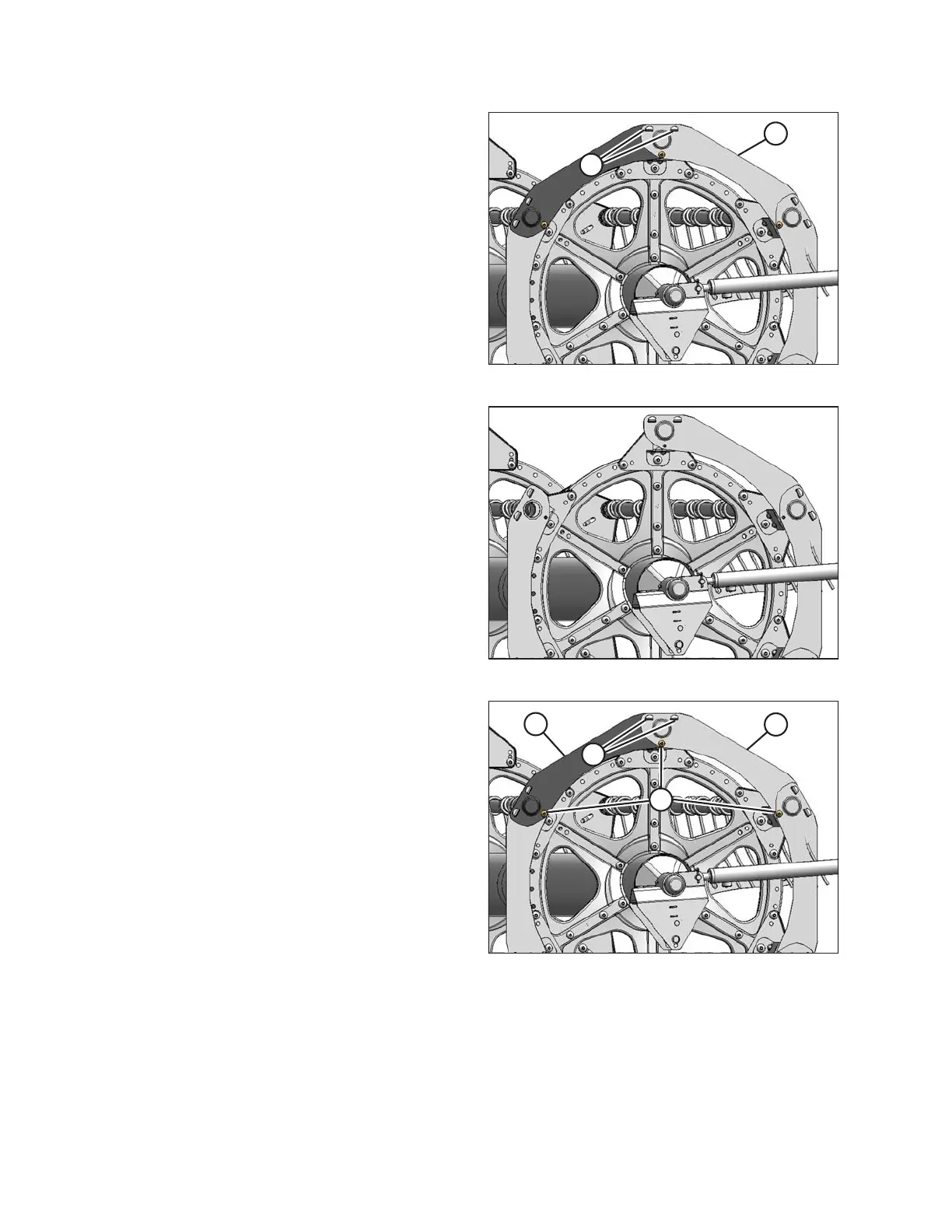

Figure 5.269: Reel Endshields
5. Lift end of reel endshield (A) off support (B).
Figure 5.270: Reel Endshields
6. Remove the reel endshield from the supports.
Figure 5.271: Reel Endshields
7. Remove the reel endshield (A) from support (B).
8. Install new reel endshield (C) onto support (B).
9. Reattach reel endshield (A) onto support (B), ensuring it
is installed on top of reel endshield (C).
10. Reinstall bolts (D).
11. Tighten all hardware.
MAINTENANCE AND SERVICING
