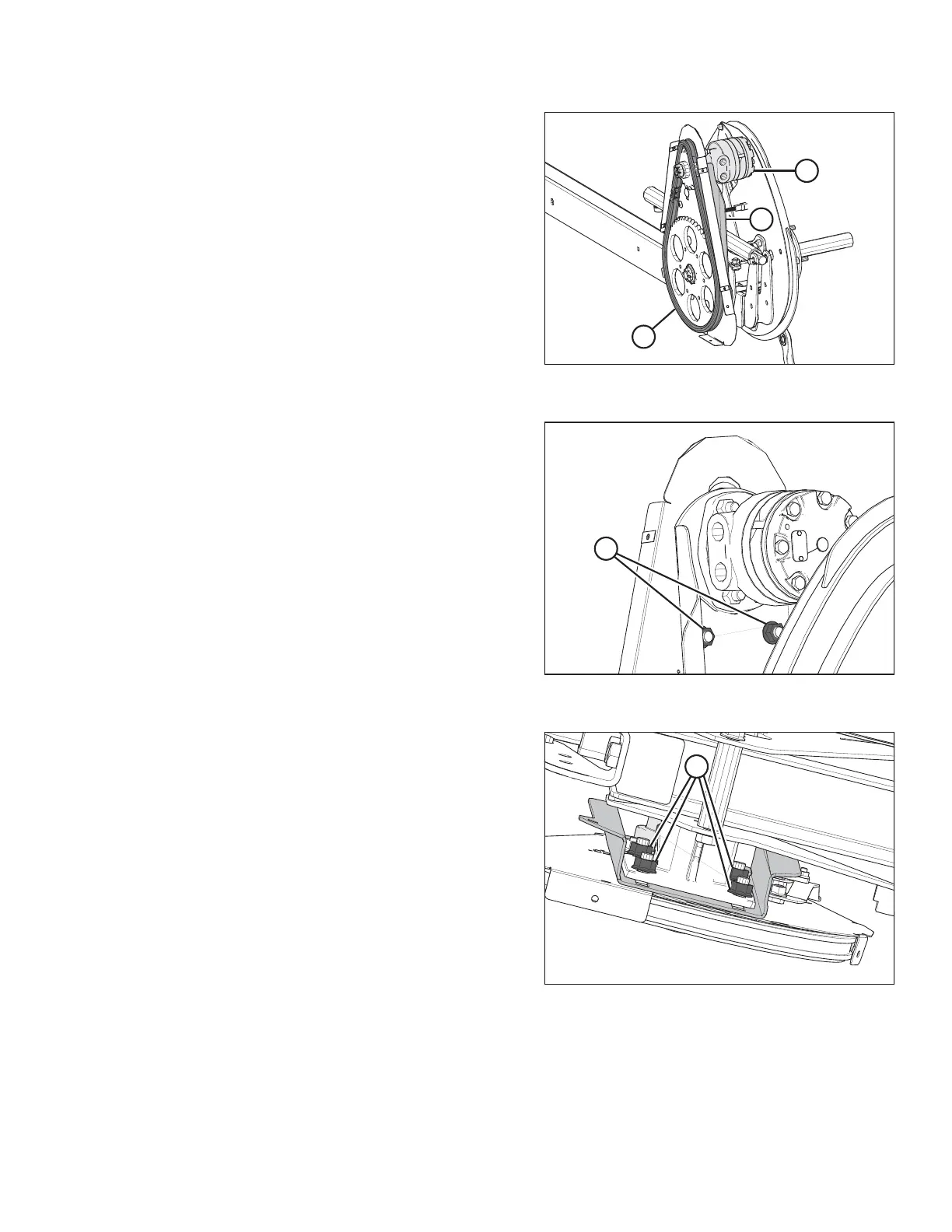

Figure 5.280: Single-Reel Drive Shown – Double
Reel Similar
3. Slide the motor (A) and motor mount (B) upward until
the chain (C) is tight.
4. Ensure there is 3 mm (1/8 in.) of slack at the chain
midspan. Adjust if necessary.
Figure 5.281: Single-Reel Drive Shown – Double
Reel Similar
Figure 5.282: Single-Reel Drive – Viewed from
Underside of Reel
5. Tighten six nuts (A).
6. Torque nuts (A) to 73 Nm (54 lbf∙ft).
7. Install the drive cover. Refer to Installing Reel Drive
Cover, page 527.
