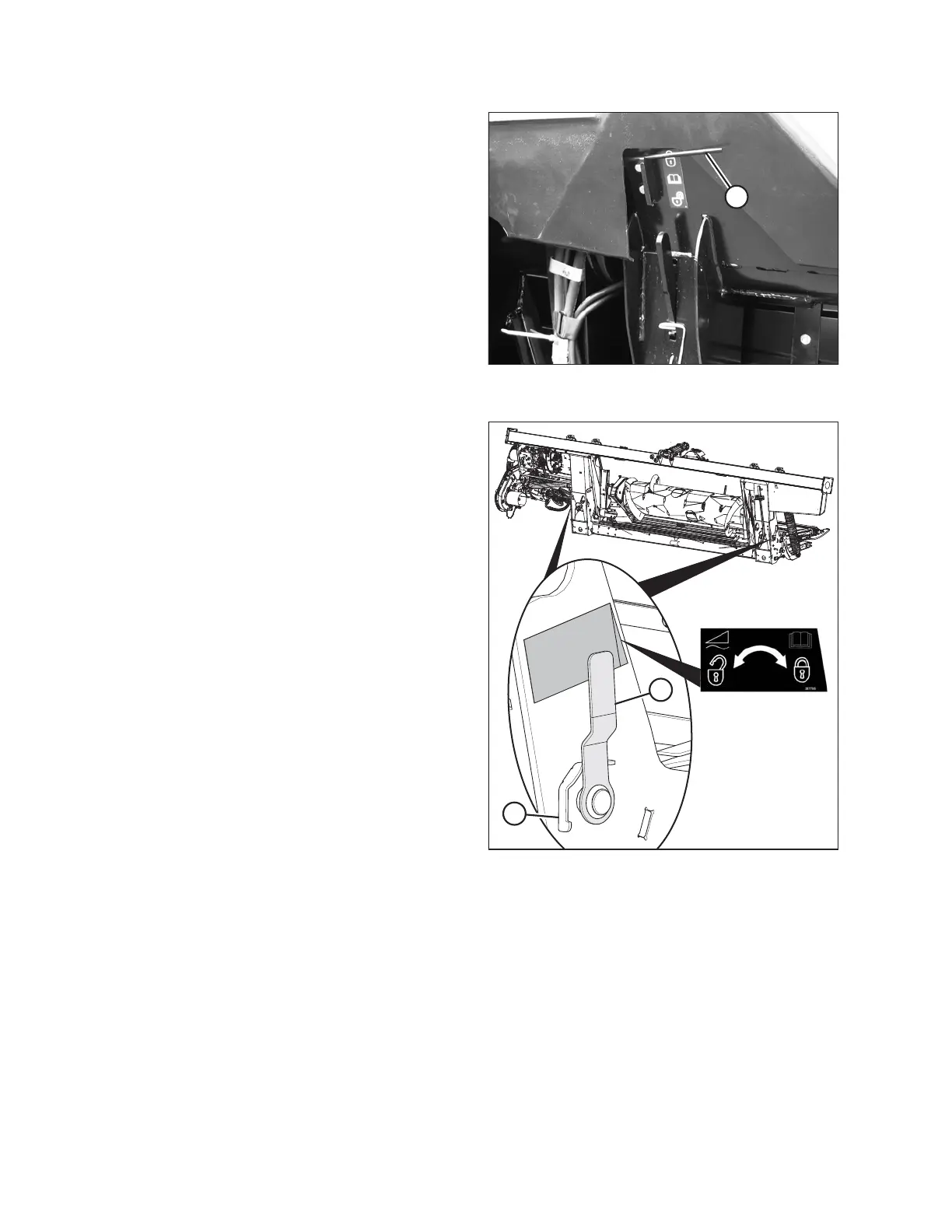

Figure 3.38: Wing Lock Spring Handle in Lock
Position
7. Place wing lock spring handles (A) in the LOCKED
(upper) position.
1024737
A
B
Figure 3.39: Header Float Lock (in Locked
Position)
8. Disengage both header float locks by pulling the float
lock handle (A) away from the float module and pushing
the float lock handle down and into position (B)
(UNLOCK).
