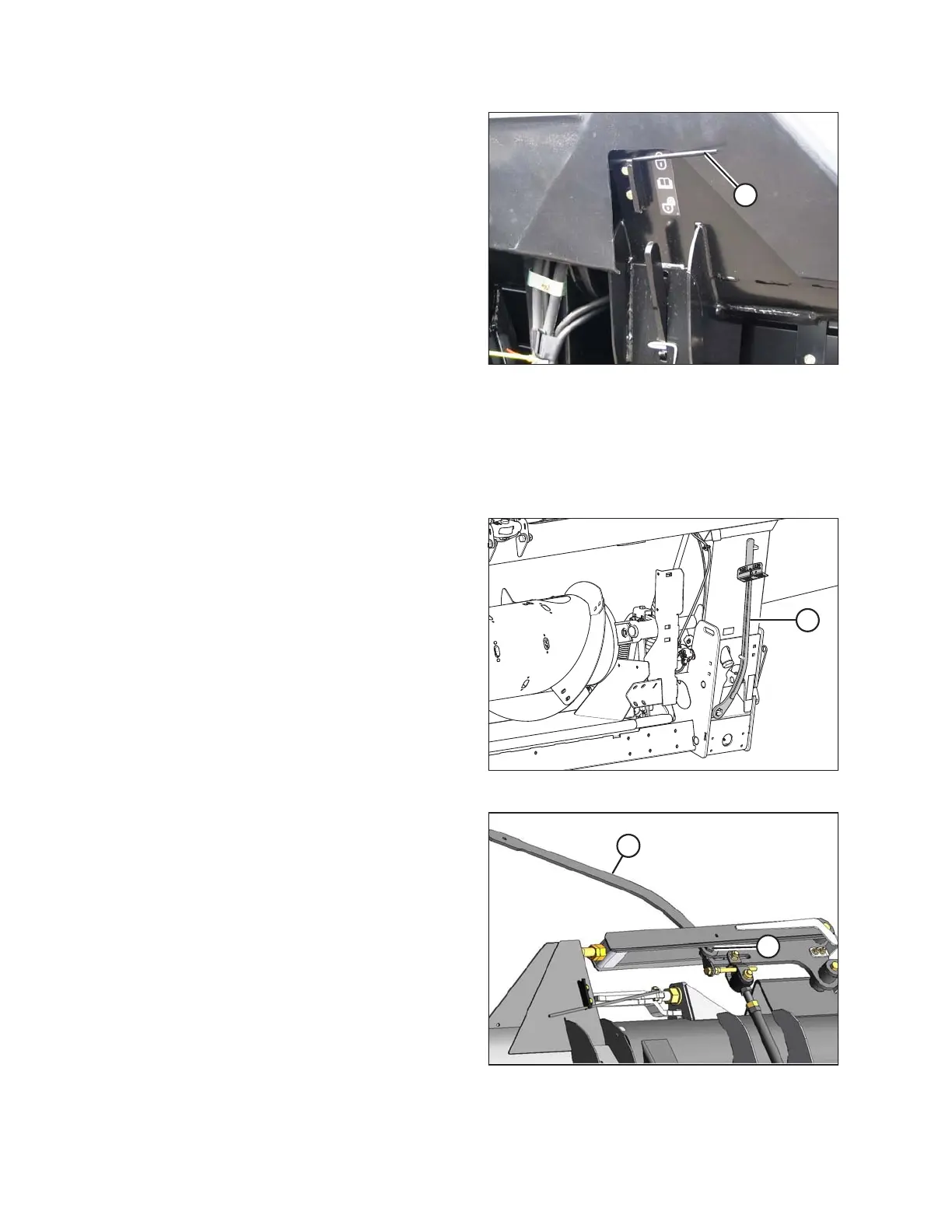

Figure 3.50: Wing Lock
2. Move spring handle (A) in the upper slot to lock the
wing. The locking should be audible.
3. If the lock link does not engage, move the wing by
raising and lowering the header, changing the header
angle, or driving the combine until it engages.
NOTE:
The following steps are only required if the above has not worked.
4. Remove the linkage cover. Refer to Removing Linkage
Covers, page 37.
Figure 3.51: Torque Wrench
5. Retrieve the supplied torque wrench (A) that is stored
on the float module frame on the right side.
Figure 3.52: Header Wing
6. Place the torque wrench (A) on bolt (B) and use it to
move the wing until the lock engages.
7. Replace the torque wrench (A) and reinstall the
linkage cover. The wings will not move relative to the
header.
OPERATION
