Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 819 en 9 - 23
GMK3060
13.12.2018

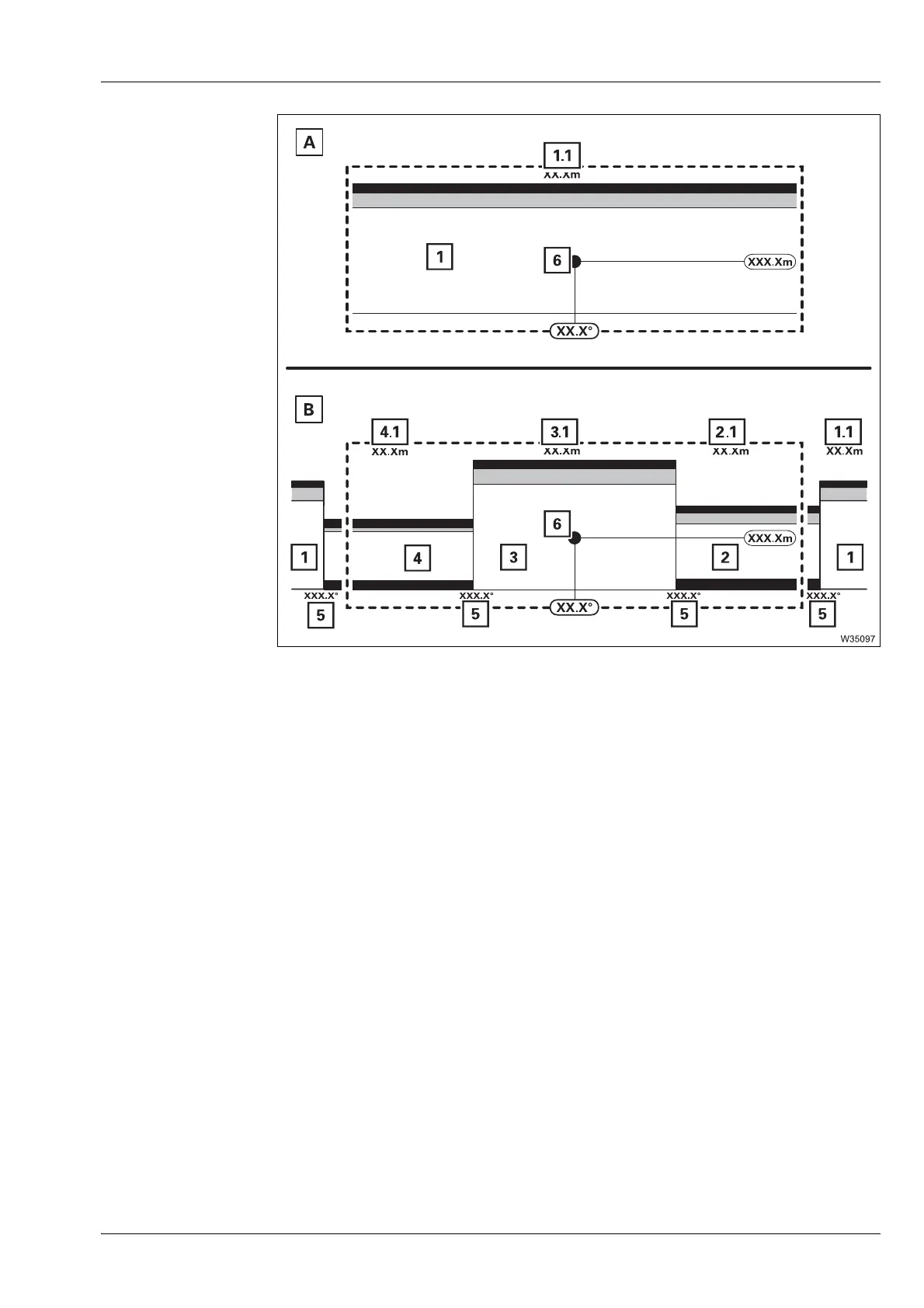

Slewing ranges/
working radii
display
A For the Standard slewing range type
B For the MAXbase slewing range type
Display of current slewing range divisions
à p. 9 - 127
1 Slewing range 1
à p. 9 - 127
2 Slewing range 2
à p. 9 - 127
3 Slewing range 3
à p. 9 - 127
4 Slewing range 4
à p. 9 - 127
5 Display of current slewing range limits
à p. 9 - 127
6 Current position display
à p. 9 - 128
Maximum permissible working radius display
à p. 9 - 128
1.1 In slewing range 1
à p. 9 - 128
2.1 In slewing range 2
à p. 9 - 128
3.1 In slewing range 3
à p. 9 - 128
4.1 In slewing range 4
à p. 9 - 128
