Operating elements for crane operation
9.1 Overview of the operating elements
9 - 22 3 302 819 en Operating manual
GMK3060
13.12.2018

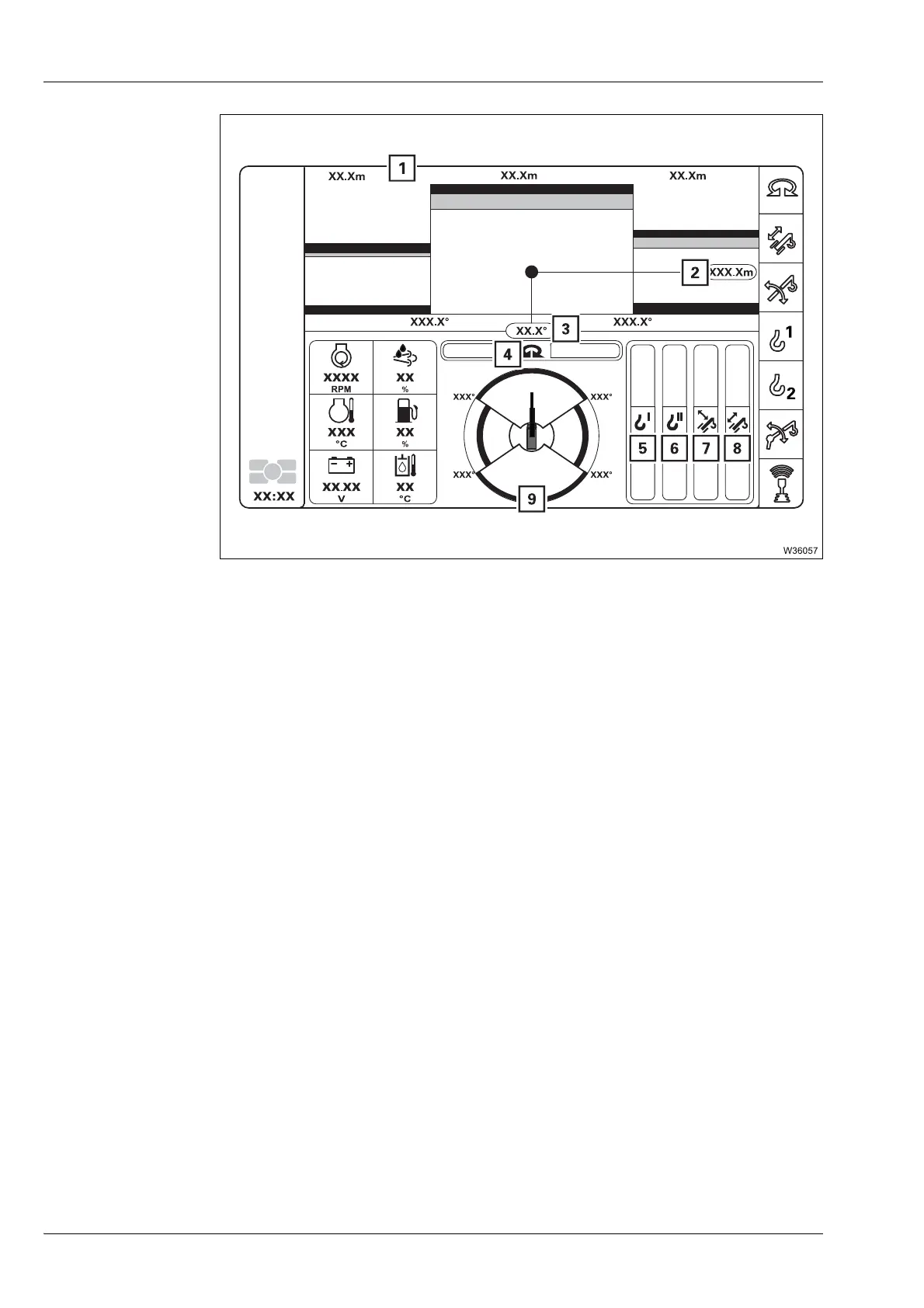

RCL display
1 Slewing ranges/working radii display à p. 9 - 23
2 Current working radius display
à p. 9 - 128
3 Current slewing angle display
à p. 9 - 128
4 Maximum permissible speed display – Slewing gear
à p. 9 - 129
5 Maximum permissible speed display – Main hoist
à p. 9 - 129
6 Maximum permissible speed display – Auxiliary hoist
1)
à p. 9 - 129
7 Maximum permissible speed display – Derricking gear
à p. 9 - 129
8 Maximum permissible speed display – Telescoping
mechanism
à p. 9 - 129
9 Slewing ranges display
à p. 9 - 129
1)
Additional equipment
