Operating elements for crane operation
9.1 Overview of the operating elements
Operating manual 3 302 819 en 9 - 29
GMK3060
13.12.2018
Superstructure
lock menu
s

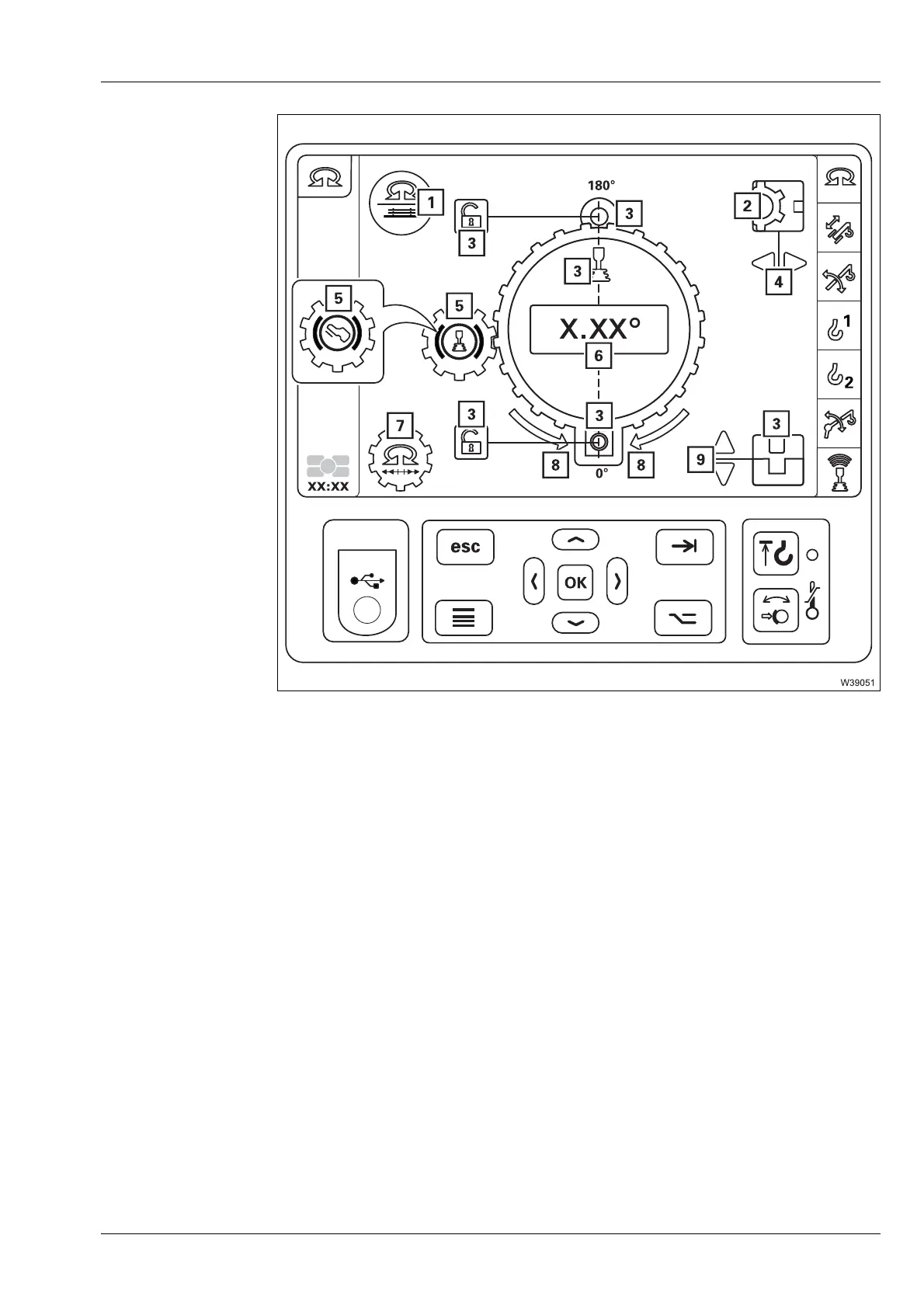

1 Slewing release display – identical to the display in
the Counterweight menu
à p. 9 - 30
2 Houselock locking status displays
1)
à p. 9 - 125
3 Locking status displays
à p. 9 - 123
4 Houselock on/off
1)
à p. 9 - 125
5 Display/switch function for the slewing gear brake
à p. 9 - 113
6 Current slewing angle display
1)
à p. 9 - 124
7 Slewing speed reduction on/off
à p. 9 - 113
8 Display slewing direction to 0°/180°
à p. 9 - 124
9 Locking/unlocking the turntable
à p. 9 - 123
1)
Additional equipment
