Operating elements for crane operation
9.2 Brief description of the operating elements
Operating manual 3 302 819 en 9 - 103
GMK3060
13.12.2018

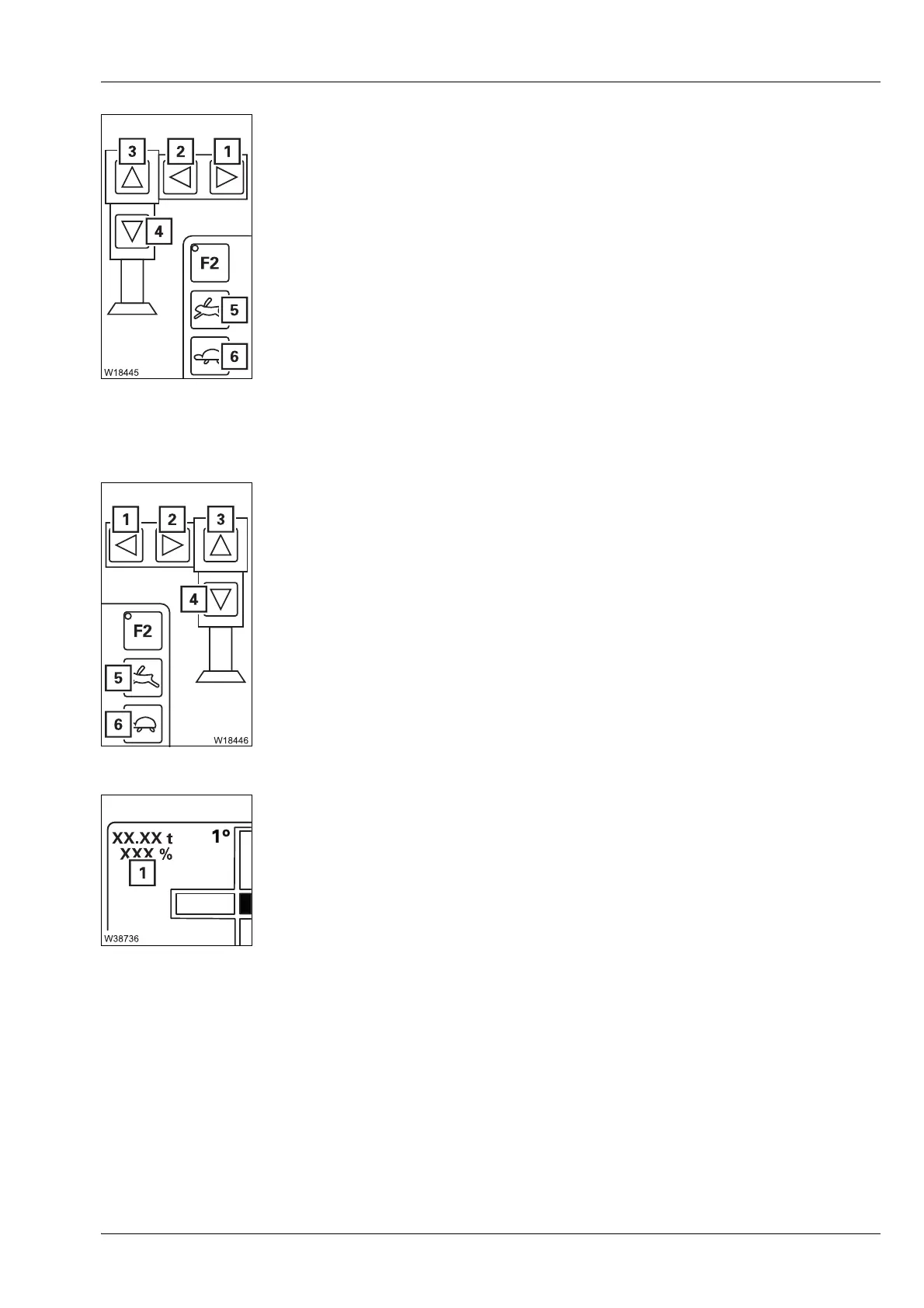

Operating the left-hand outriggers (next to control unit)
Button (5) or (6) is pressed.
Movement stops after the button is released, and when an end position is
reached.
Operating the right outriggers (next to control unit)
Operation is the same as on the button unit for Left outriggers (next to the control
unit).
Display of outrigger span
1Retract: Press button – outrigger beam retracts
1)
2 Extend: Press button – outrigger beam extends
1)
3Retract: Press button – outrigger cylinder retracts
4 Extend: Press button – outrigger cylinder extends
1)
only on operator's side
Outrigger beams;
à p. 12 - 34
Supporting cylinders;
à p. 12 - 40
1 Outrigger span in percent
à p. 12 - 34
