11.4 Operation of the rated capacity limiter
Operating manual 3 302 819 en 11 - 39
GMK3060
13.12.2018
The displayed menu depends on the slewing
range type.
The selection is not restricted when you adhere to
this sequence when entering the data.
After entering the rigging mode you can preselect
a telescope status (6) and then conform the
rigging mode together with the display lifting
capacity table.
Slewing range
• Select and confirm the display (1).
• Select the required slewing range (2), for
example, operating position 0° to the rear.
• Confirm the selection. The corresponding RCL
code (3) is displayed.
You can only confirm rigging modes for slewing
ranges other than 360°:
– When the selected operating position is
reached and the slewing gear is switched off.
– When the superstructure is in the selected
slewing range.
If necessary, first enter the 360° slewing range
and slew the superstructure into the required
position.

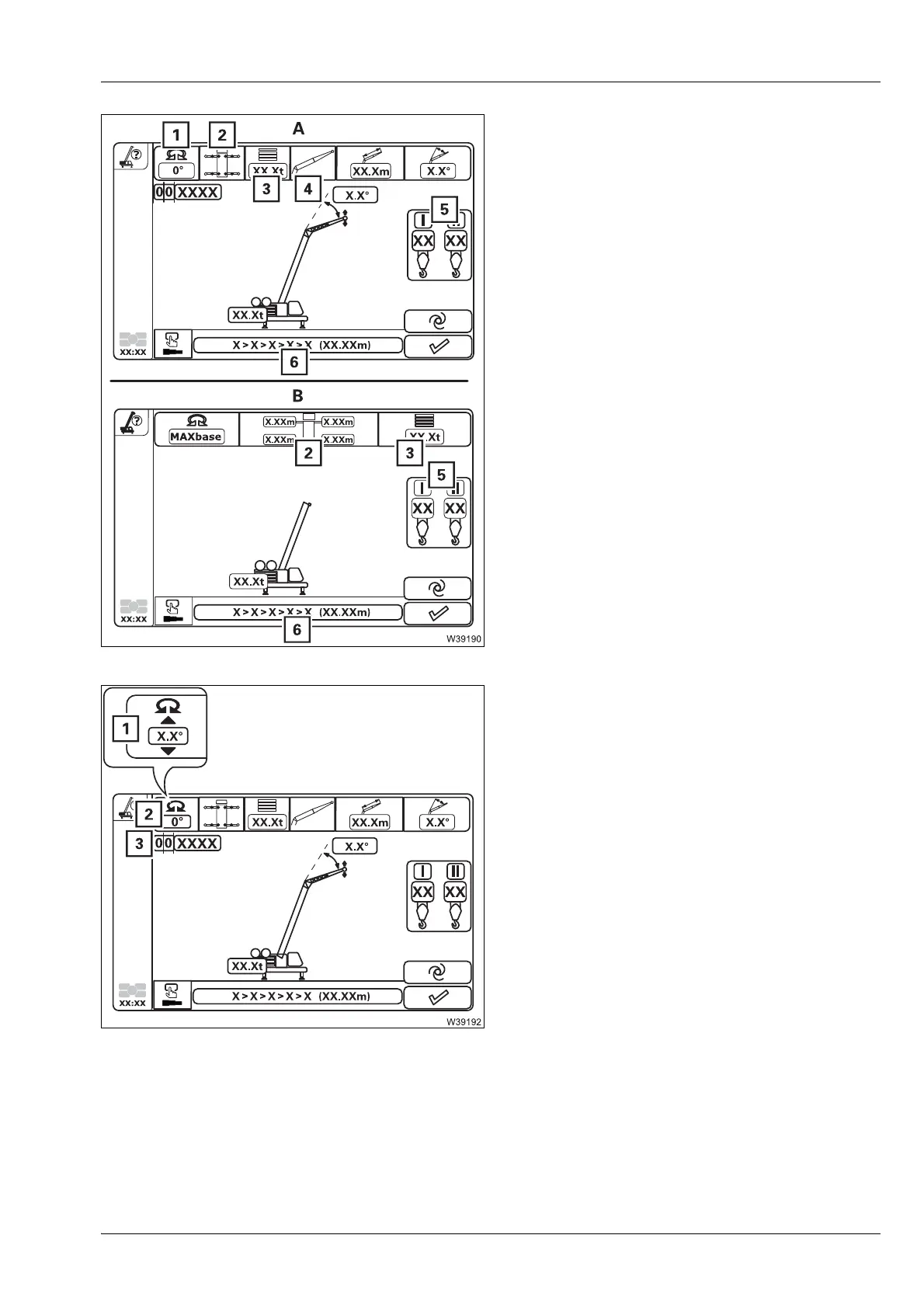

s
A Menu for Standard
B Menu for MAXbase
1 Slewing range – only with the Standard
slewing range type
2 Outrigger span – can also be adopted from
the outrigger span monitoring
3 Counterweight
4 Boom system – only with the Standard
slewing range type
5 Reeving
