Crane operation
11.4 Operation of the rated capacity limiter
11 - 42 3 302 819 en Operating manual
GMK3060
13.12.2018
Counterweight

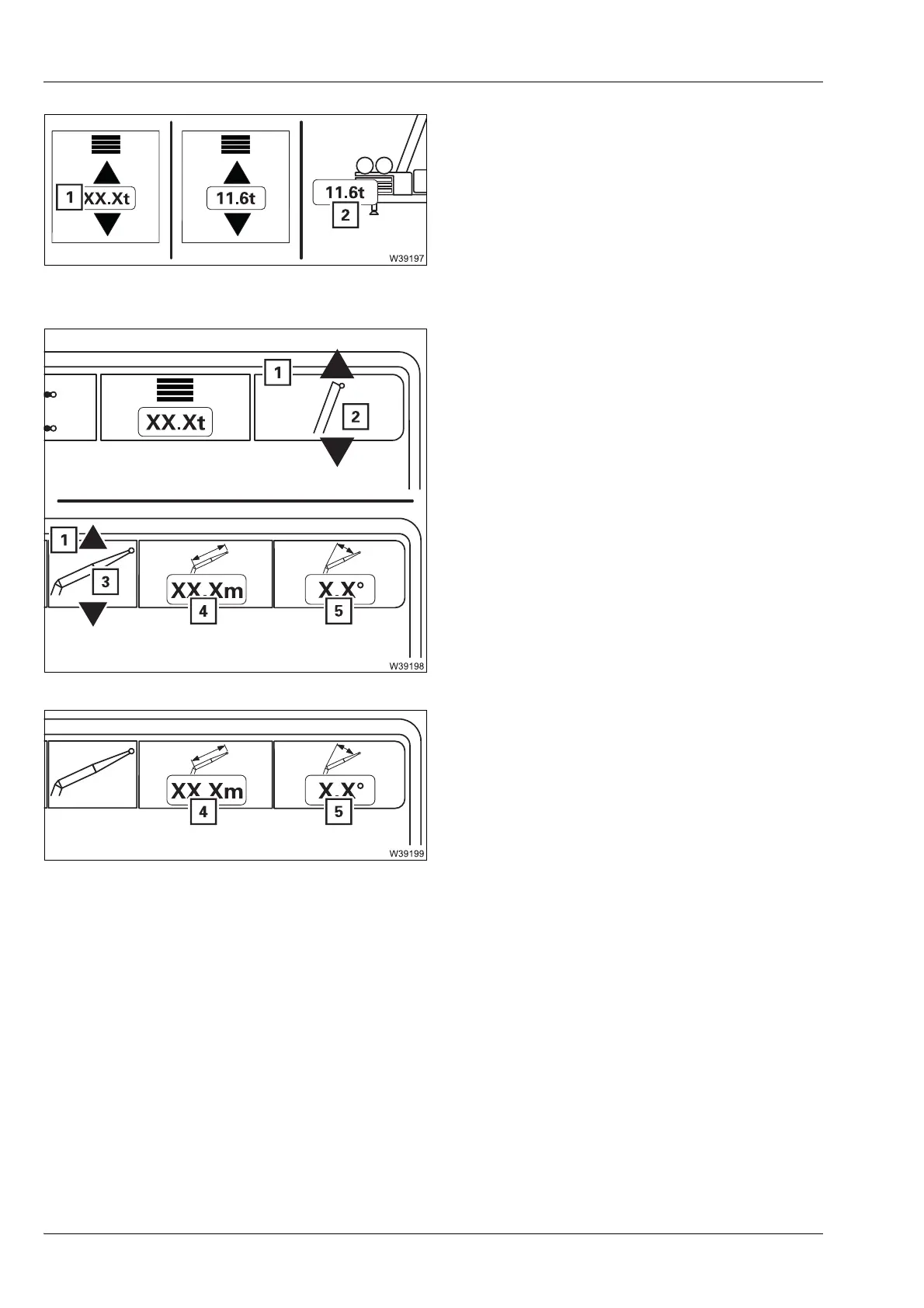

• Select and confirm the display (1).
• Select the rigged counterweight combination,
for example, 11.6 t.
• Confirm the selection.
The display (2) shows the entered counter-
weight combination.
Boom system
For the Standard slewing range type only.
• Select and confirm the display (1).
• Select the symbol for the rigged boom system.
• Confirm the selection.
When selecting Lattice extension additional dis-
plays (4) and (5) are shown – selection and
confirmation is performed in the same manner
as with display (1).
– Display (4)
• Select and confirm the current length of the
lattice extension.
– Display (5)
Only for inclinable lattice extensions.
• Select and confirm the currently rigged angle.
2 Main boom
3 Lattice extension
