Rigging work
12.1 Rigging work checklists for crane operation with the main boom
12 - 2 3 302 819 en Operating manual
GMK3060
13.12.2018

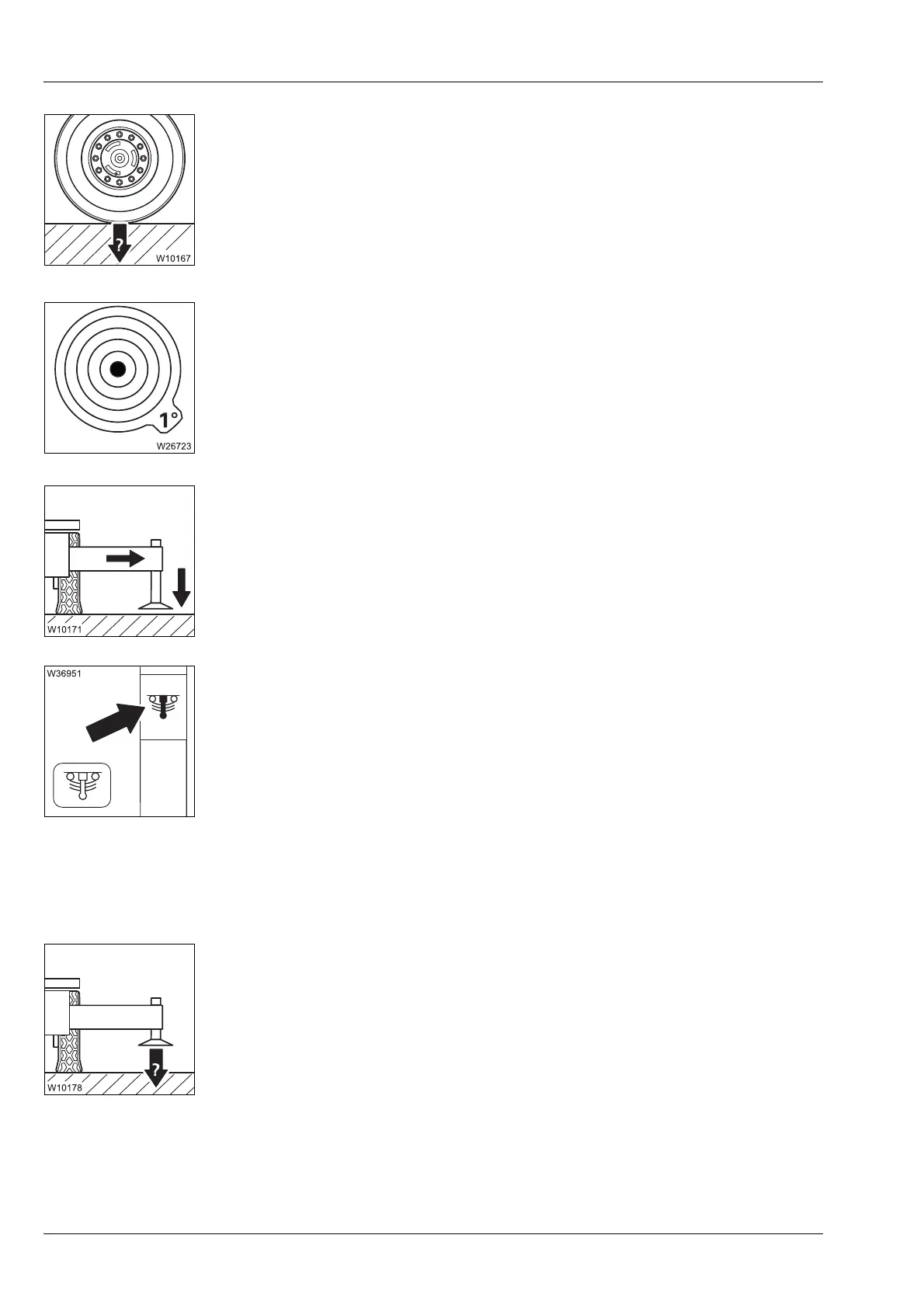

3. For the Free on wheels operating position
– Check that the tyre pressure is correctly set;
à p. 1 - 14.
– Check that the ground can support the maximum axle loads
à Weight and axle loads, p. 1 - 9,
à Determining the required load-bearing area, p. 12 - 9.
4. Align the truck crane horizontally with the level adjustment system;
à Operating the level adjustment system, p. 5 - 58.
5. On the outriggers:
– Extend all outrigger beams as far as possible;
à p. 12 - 33.
– Move all outrigger pads into the operating position;
à p. 12 - 37.
– Extend all outrigger cylinders far enough so that the outrigger pads are just
above the ground;
à p. 12 - 39.
6. Deactivate (Lock) the suspension – symbol red (suspension off);
à p. 5 - 17.
H
The following points only apply when rigging the truck crane on outriggers. To
continue rigging in the Free on wheels operating position, continue the checklist at
point 11.
7. Check that the ground will support the maximum occurring outrigger
pressures;
à Determining the required load-bearing area, p. 12 - 9.
