Rigging work
12.5 Operating the outriggers
12 - 46 3 302 819 en Operating manual
GMK3060
13.12.2018
Automatic
alignment
During the automatic alignment procedure, the supporting cylinders are
extended only to prevent any wheels touching the ground after the alignment.
• Check that the prerequisites are met; à p. 12 - 44.

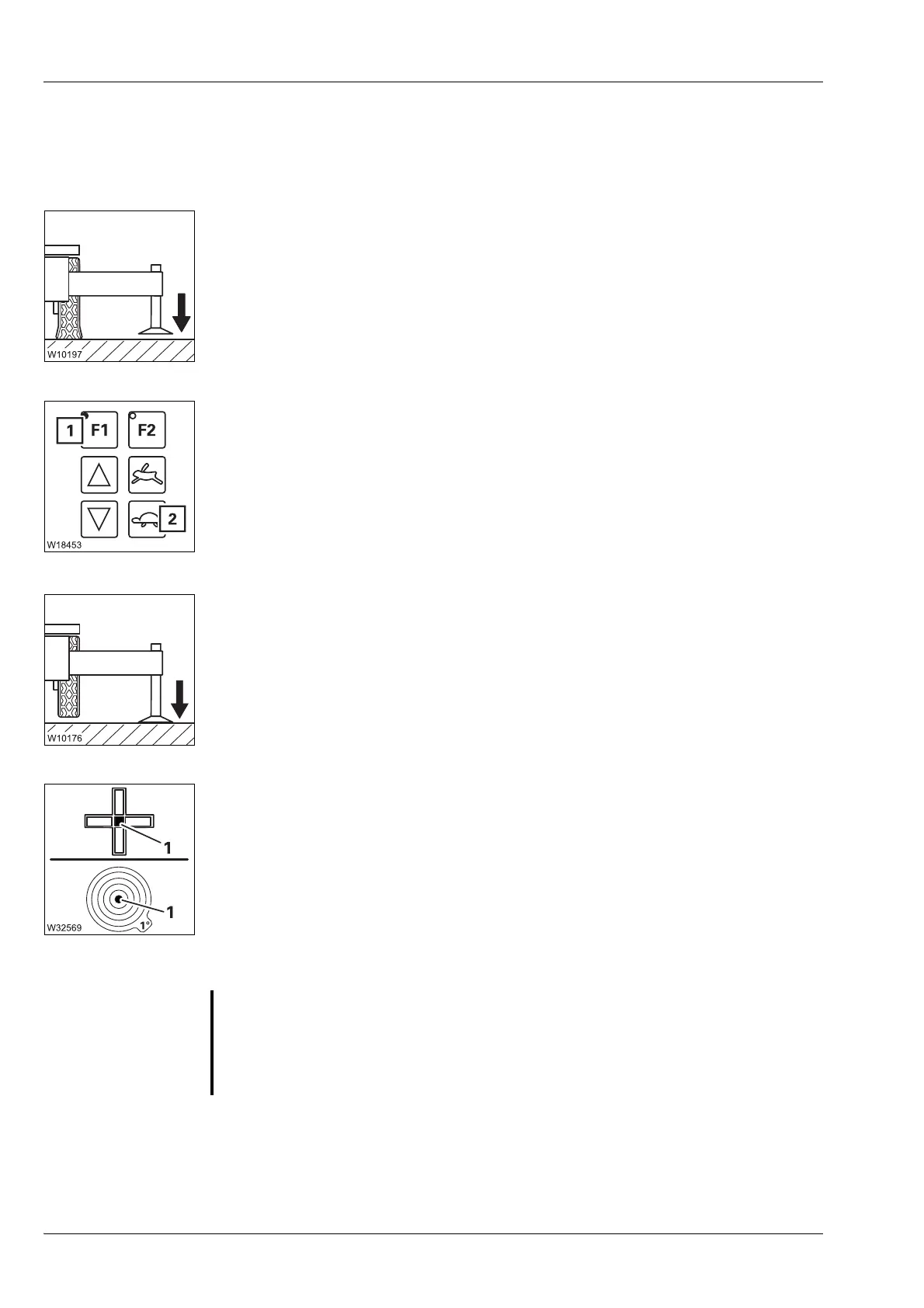

• Extend the supporting cylinders until the outrigger pads are just above the
ground
Starting procedure
On the control units
• Press the button (1).
• Additionally, press the button (2).
The procedure begins.
Automatic procedure
1. All supporting cylinders are extended one after the other until the outrigger
pads touch the ground
2. All the supporting cylinders are extended simultaneously so that none of the
wheels is touching the ground any more.
3. The truck crane is automatically levelled
This procedure is performed:
– until horizontal alignment is reached, the lamp (1) in the centre is the only
one lighting up in measuring range 1° or
– until you let go of a button or
– until horizontal alignment is no longer possible,
e.g. when a supporting cylinder is extended as far as possible.
G
Danger of overturning if the truck crane is not level!
When CCS ends the automatic alignment procedure, the truck crane is not
necessarily level.
Always check the horizontal alignment on the inclination indicator after automatic
levelling.
