(00292)H 4 - 25

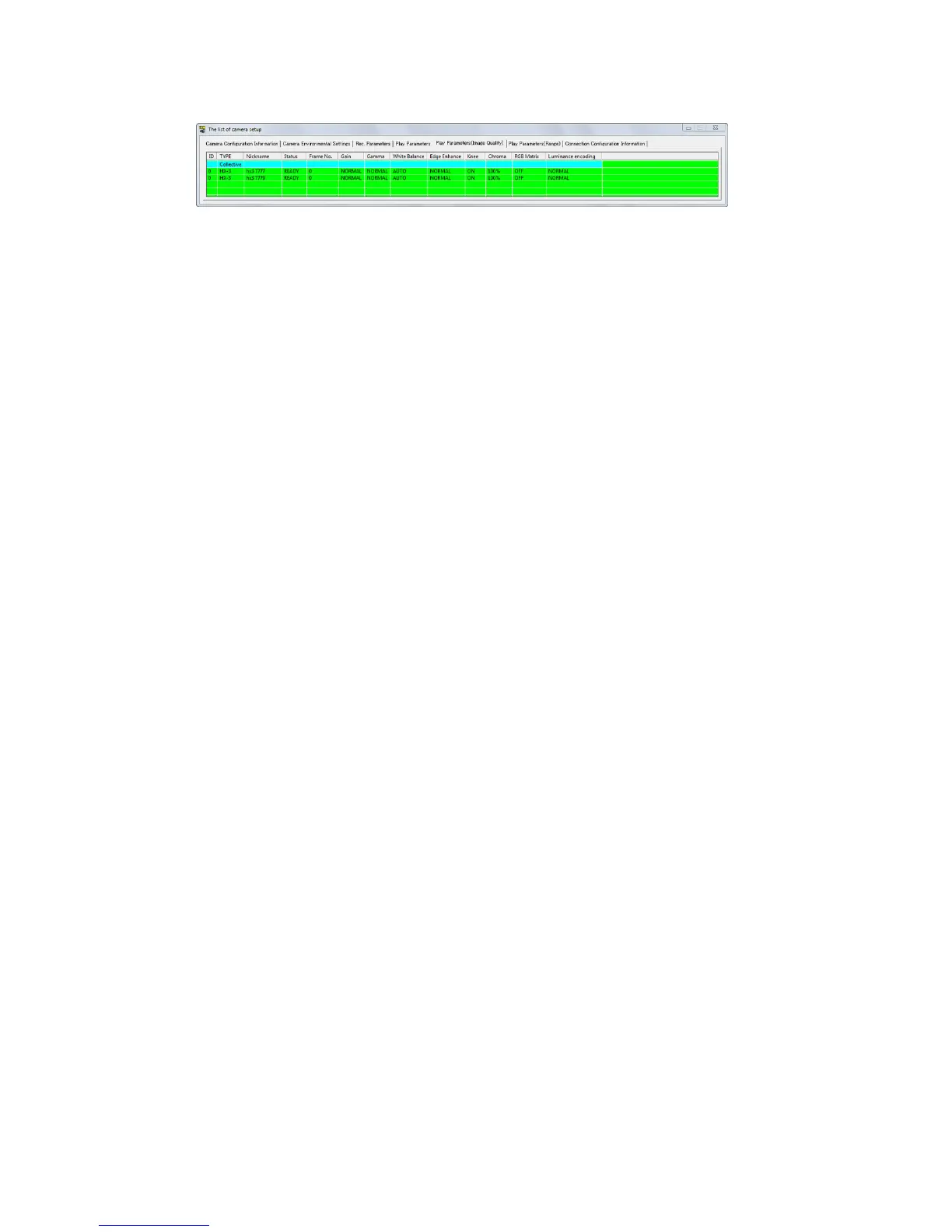

・ "Playback Parameters (Image Quality)"
Playback Parameters (Image Quality)
"Playback Parameters (Image Quality)" Items
ID Camera (DRP) ID
TYPE Camera (DRP) model
(For display only. The settings cannot be changed. )
Nickname Camera (DRP) nickname (refer to page 4-2)
(For display only. The settings cannot be changed. )
Status Camera (DRP) status
(For display only. The settings cannot be changed. )
Current Frame Current frame
Gain Brightness
LOW, NORMAL, HIGH can be set with the MEMRECAM HX, GX, Q cameras.
LOW Lower gain by one aperture.
NORMAL Normal brightness.
HIGH Raise gain by one aperture.
Set from 0dB, +6dB, +12dB with the MEMRECAM ci, fx series.
0db Normal brightness.
+6db Raise gain by one aperture.
+12 db Raise gain by two apertures.
Gamma Gamma correction
OFF No gamma correction.
LOW Low gamma correction.
NORMAL Normal gamma correction.
White Balance White Balance
AUTO Auto white balance setting.
3100K Setting for 3100K color temperature.
5000K Setting for 5000K color temperature.
9000K Setting for 9000K color temperature.
REG Uses the auto white balance setting obtained with SET during the
preview.
Enhance Enhance profile
OFF No enhance.
LOW Low enhance.
NORMAL Normal enhance.
HIGH High enhance.
Knee Turns correction expanding the dynamic range ON/OFF by lowering the
gain of the signals exceeding a specific brightness level.
To Next Page
